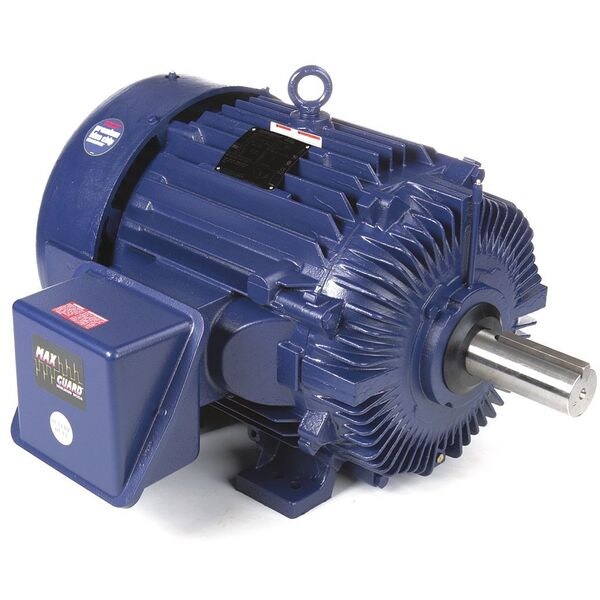

General Purpose Mtr, 3-Ph, TEFC, 75 HP
Mfr # 405TTFCD6586
Zoro # G2245236
product price: $11,520.24
/ea
Item requires special delivery charges. A $430.00 per item surcharge will be applied.
Key Features
Motor Design
Three-Phase
Phase
Three
HP
75 hp
RPM Range
1,101-1,200
Voltage
460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
405TTFCD6586
Zoro #
G2245236
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
35 7/16 in
Shaft Length
7 1/2 in
Length Less Shaft
29 5/8 in
Shaft Dia.
2 7/8 in
Lead Length
3" to 8"
Manufacturers Warranty Length
1 yr
Description
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 75 hp HP, Nameplate RPM 1,188 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 89.0 A, 405T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
