Shop MARATHON

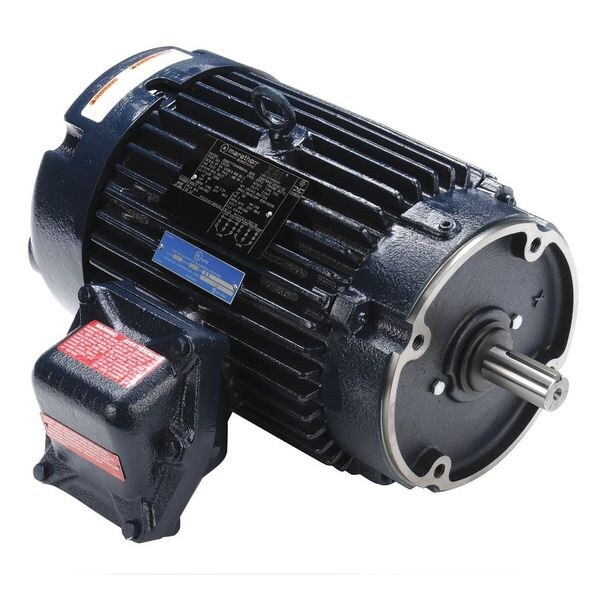

Hazardous Loc Mtr, 3 Ph, TEFC, 3 HP, T3B

  • Mfr # 182TTGCD4068
  • Zoro # G3678622
product price:
$
1,172.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTGCD4068
Zoro #
G3678622
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 5/8 in
Shaft Dia.
1 1/8 in
Overall Length
18 5/8 in
Length Less Shaft
16 in
Lead Length
6 in
Frame Size
182TC
Wire Rope Length
18 5/8 in
Shaft Diameter
1 1/8 in
Length
18 5/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
182TC
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
Motor Bearings
Ball
Motor Shaft Design
Keyed
CC Number
CC003A
Full Load Amps
8.0/4.0 A
Hz
60 Hz
Duty
Continuous
Includes
(11) Leads in the Conduit Box
Motor Service Factor
1
Nominal Efficiency
90.2 %
NEMA Design
B
Item
Hazardous Location Motor
Ins. Class
F
Frame Material
Cast Iron
Motor Application
Hazardous Location
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,765 RPM
Motor Frame Material
Cast Iron
Temp. Code
T3B
Motor Shaft Rotation
CW/CCW
Standards
UL Certified for Canada, UL Listed
Motor Efficiency Group
Energy Efficient
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Hazardous Location Division
Division I
Conduit Box Location
Exterior
Weight
147 lb
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Hazardous Location Group
Group D, Group F, Group G
Insulation Class
F
Frequency
60 Hz
Shaft Design
Keyed
Application
Hazardous Location
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
8.0/4.0 A
Bearing Type
Ball
Mounting Position
Horizontal
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1
Temperature Code
T3B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Number of Speeds
1
Product Type
Hazardous Location Motor

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 8.0/4.0 A, 182TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
