  11. GP Motor, 75 HP, 1,790 RPM, 230/460V, 250M

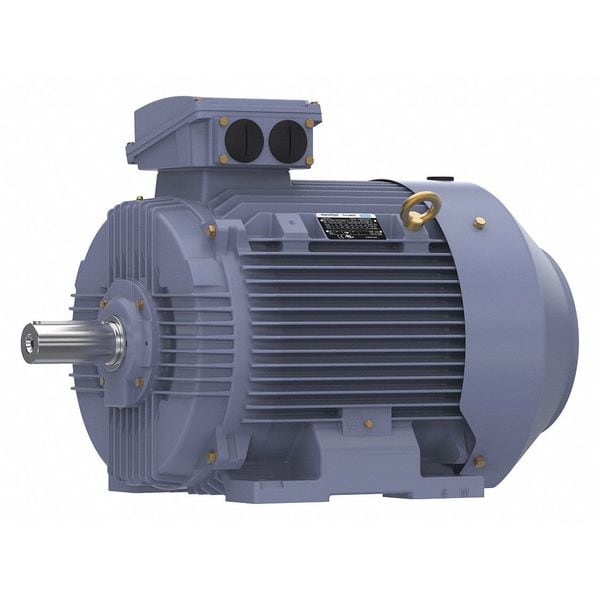

Marathon GP Motor, 75 HP, 1,790 RPM, 230/460V, 250M TCA0552AE211GAA009 - main

GP Motor, 75 HP, 1,790 RPM, 230/460V, 250M

  • Mfr # TCA0552AE211GAA009

  • Zoro # G8661771

product price: $10,901.99
/ea
Item requires special delivery charges. A $435.00 per item surcharge will be applied.

Key Features

Motor Design
Three-Phase
HP
75
RPM Range
1701-1800
Voltage
230/460V AC
Frame
250M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA0552AE211GAA009
Zoro #
G8661771
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
65 mm
Manufacturers Warranty Length
1 yr
Shaft Length
140 mm
Overall Length
941 mm
Length Less Shaft
801 mm

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
75
RPM Range
1701-1800
Voltage
230/460V AC
Frame
250M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
174.0/87.0 A
Motor Service Factor
1.15
Nominal Efficiency
95.4 %
kW
55.0
Motor Frame Material
Cast Iron
Duty
Continuous
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Standards
CE, UL Recognized
Ins. Class
F
Nameplate RPM
1790 rpm
Motor Shaft Rotation
CW/CCW
Hz
60/50 Hz
Phase
Three
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
CC Number
CC003A
Motor Application
General Purpose
NEMA Design
N
Voltage @ 50Hz
200/400
Full Load Amps @ 50Hz
168.0/84.0 A
Inverter Rated
Yes
No. of Speeds
1
Weight
1,300.7 lb
Duty Cycle
Continuous
Usable @ 200V
No
RPM @ 50Hz
1790 rpm
Service Factor @ 50Hz
1.15
Usable @ 208V
No
HP @ 50Hz
75
Motor Mounting Position
Horizontal
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, 55.0 kW, Nameplate RPM 1790 rpm, Frame 250M, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 174.0/87.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800
