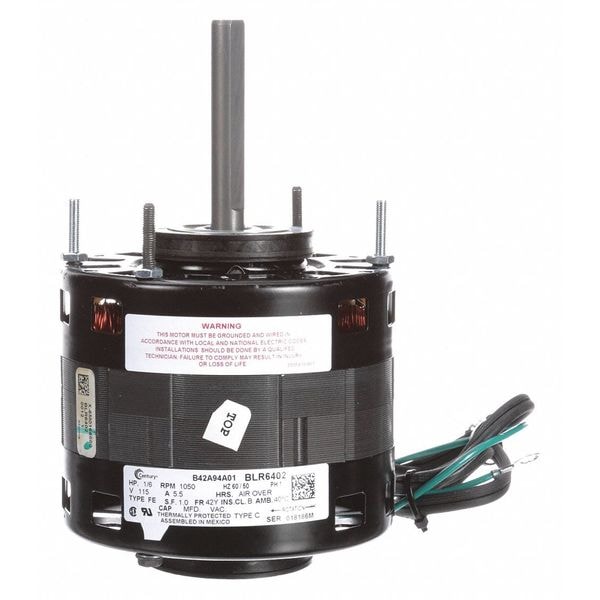

Motor, Sh Pole, 1/6 HP, 1050,115V, 42Y, OAO
Mfr # BLR6402
Zoro # G3159186
product price:Â $154.99
/ea
Free Shipping & Returns
Key Features
No. of Speeds
1
Motor Service Factor
1
Motor Shaft Rotation
CCWLE
Hz
60 Hz
Stud Size
#10-32
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BLR6402
- Zoro #
- G3159186
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Stud Size
- #10-32
- Shaft Dia.
- 1/2 in
- Bolt Circle Dia.
- 4 7/16 in
- Length Less Shaft
- 4 15/16 in
- Body Dia.
- 5 in
- Resilient Ring Dia.
- 2 1/2 in
- Shaft Length
- 2 11/16 in
- Overall Length
- 7 15/16 in
- Lead Length
- 21 in
- Bolt Circle Diameter
- 4 7/16 in
- Shaft Diameter
- 1/2 in
- Body Diameter
- 5 in
- Frame Size
- 42Y
- Mounting Stud Thread Size
- #10-32
- Resilient Ring Diameter
- 2 1/2 in
- Wire Rope Length
- 7 15/16 in
Description
Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/6 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 1, Voltage 115V AC, 5.05 A Full Load Amps, 42Y Frame, Output Watts 130 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Motor Frame Material Steel
