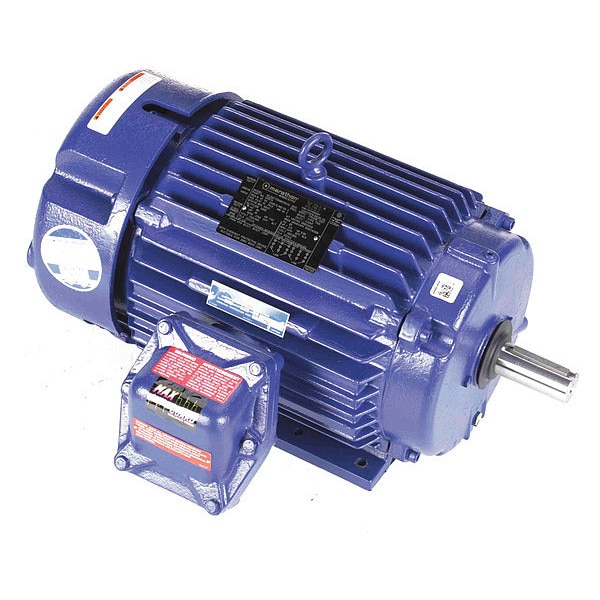

Hazardous Location Motor, 10 HP, 1765 rpm

  • Mfr # 215TTGCD6526
  • Zoro # G4852920
product price:
$
2,188.99
/ea
Additional $205.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
215TTGCD6526
Zoro #
G4852920
UPC #
-
Country of Origin
Mexico
Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
215T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
CC Number
CC003A
Nameplate RPM
1,765 RPM
Hz
60 Hz
Full Load Amps
26.6/13.3 A
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Cast Iron
Standards
UL Certified for Canada, UL Listed
Motor Service Factor
1.15
Motor Application
Hazardous Location
NEMA Design
B
Nominal Efficiency
91.7 %
Ins. Class
F
Duty
Continuous
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Bearings
Ball
Motor Shaft Design
Keyed
Temp. Code
T3B
Item
Hazardous Location Motor
No. of Speeds
1
Hazardous Location Division
Division I
Usable @ 208V
Not Usable at 208V
Weight
266 lb
Conduit Box Location
Exterior
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
Hazardous Location Group
Group C, Group D, Group F, Group G
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
26.6/13.3 A
Number of Speeds
1
Manufacturers Warranty
3 yr
NEMA Design Class
B
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Application
Hazardous Location
Product Type
Hazardous Location Motor
Temperature Code
T3B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Insulation Class
F
Bearing Type
Ball
Frame Material
Cast Iron
Mounting Position
Horizontal

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 26.6/13.3 A, 215T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
