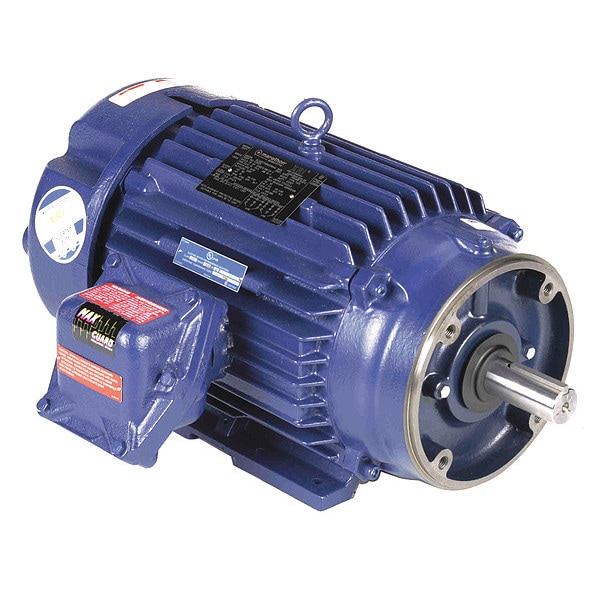

Hazardous Location Motor, 3-Phase, 10 HP

  • Mfr # 215TTGCD6528
  • Zoro # G6883742
product price:
$
2,032.99
/ea
Additional $230.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTGCD6528
Zoro #
G6883742
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 3/8 in
Overall Length
23 7/16 in
Shaft Length
3 1/8 in
Lead Length
8 in
Length Less Shaft
20 5/16 in
Manufacturers Warranty Length
3 yr
Frame Size
215TC
Shaft Diameter
1 3/8 in
Wire Rope Length
23 7/16 in
Length
23 7/16 in

Details

Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
215TC
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
Ins. Class
F
Nominal Efficiency
91.7 %
Motor Bearings
Ball
Item
Hazardous Location Motor
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Shaft Design
Keyed
Duty
Continuous
NEMA Design
B
Temp. Code
T3B
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.15
Hz
60 Hz
Standards
UL Certified for Canada, UL Listed
Nameplate RPM
1,765 RPM
Full Load Amps
26.6/13.3 A
Motor Application
Hazardous Location
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
CC Number
CC003A
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Hazardous Location Division
Division I
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
No. of Speeds
1
Weight
268 lb
Hazardous Location Group
Group C, Group D, Group F, Group G
Frequency
60 Hz
NEMA Design Class
B
Product Type
Hazardous Location Motor
Temperature Code
T3B
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Cast Iron
Number of Speeds
1
Application
Hazardous Location
Manufacturers Warranty
3 yr
Bearing Type
Ball
Shaft Design
Keyed
Full Load Current @ 60 Hz
26.6/13.3 A
Insulation Class
F

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 26.6/13.3 A, 215TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
