Contact our U.S. based teamSpecifications
Product Information
MFR #
286TSHFCD9001
Zoro #
G2245507
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
26 1/2 in
Shaft Dia.
1 5/8 in
Shaft Length
3 7/16 in
Length Less Shaft
23 in
Lead Length
3" to 8"
Description

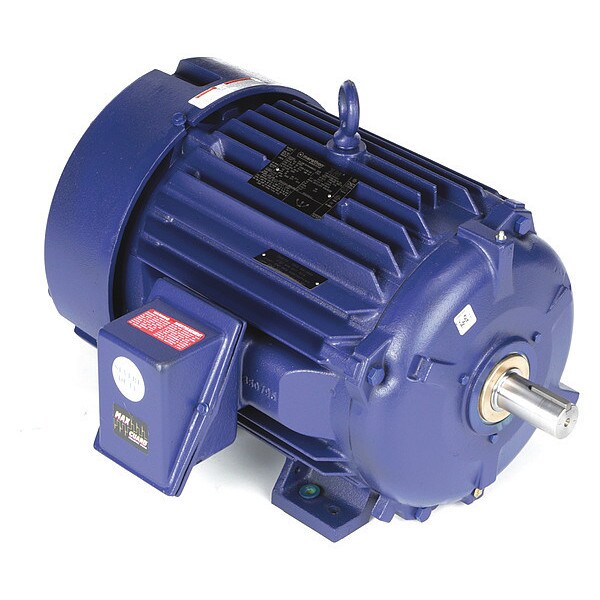

IEEE 841 Motor, Three Phase, Motor Design 3-Phase, 30 HP, Nameplate RPM 3560, No. of Speeds 1, Voltage 460, Full Load Amps 34.0, 286TS Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
