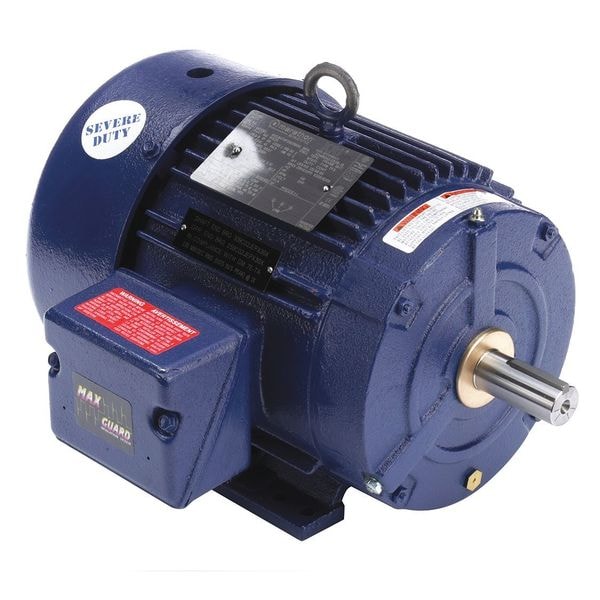

IEEE 841 Motor, 3-Ph, TEFC, 5 HP, T2B
Mfr # 184THFCD9026
Zoro # G5614095
product price: $1,039.99
/ea
Item requires special delivery charges. A $65.00 per item surcharge will be applied.
Key Features
Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
1701-1800
Voltage
460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
184THFCD9026
Zoro #
G5614095
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Length Less Shaft
13 3/8 in
Overall Length
16 3/16 in
Lead Length
3" to 8"
Description
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 6.5 A, 184T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
