Shop MARATHON

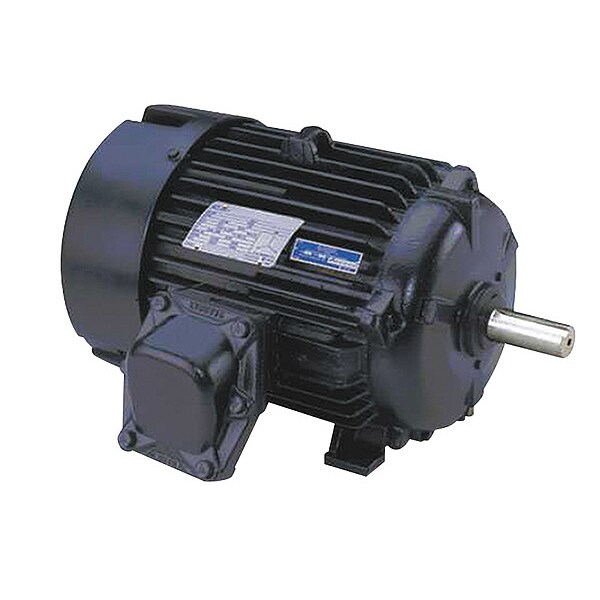

Hazardous Loc Mtr, 3 Ph, TEFC, 15 HP, T3B

  • Mfr # 254TTGCD6507
  • Zoro # G3558965
product price:
$
2,787.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
15 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
254TTGCD6507
Zoro #
G3558965
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 5/8 in
Overall Length
23 1/2 in
Lead Length
8 in
Length Less Shaft
19 5/16 in
Shaft Length
4 3/16 in
Manufacturers Warranty Length
3 yr
Frame Size
254T
Wire Rope Length
23 1/2 in
Shaft Diameter
1 5/8 in
Length
23 1/2 in

Details

Motor Design
Three-Phase
Phase
Three
HP
15 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Frame
254T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Ins. Class
F
Full Load Amps
35.0/17.5 A
Motor Frame Material
Cast Iron
Temp. Code
T3B
Motor Shaft Design
Keyed
Duty
Continuous
NEMA Design
B
Nameplate RPM
3,550 RPM
Motor Application
Hazardous Location
Motor Efficiency Group
NEMA Premium Efficient
Item
Hazardous Location Motor
Includes
(11) Leads in the Conduit Box
Nominal Efficiency
91.7 %
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Hz
60 Hz
Motor Service Factor
1.15
Frame Material
Cast Iron
Max. Ambient Temp.
40 Degrees C
CC Number
CC003A
Standards
CSA Certified, UL Listed
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Hazardous Location Division
Division I
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Conduit Box Location
Exterior
Weight
2,270 lb
Usable @ 200V
Not Usable at 200V
Hazardous Location Group
Group C, Group D, Group F, Group G
Product Type
Hazardous Location Motor
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
NEMA Design Class
B
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
Hazardous Location
Nameplate Service Factor @ 60 Hz
1.15
Temperature Code
T3B
Mounting Position
Horizontal
Shaft Design
Keyed
Manufacturers Warranty
3 yr
Full Load Current @ 60 Hz
35.0/17.5 A
Frequency
60 Hz
Number of Speeds
1

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 3,550 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 35.0/17.5 A, 254T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
