  6. Metric Motor, 5 1/2 HP, 1,765 RPM, 230/460V

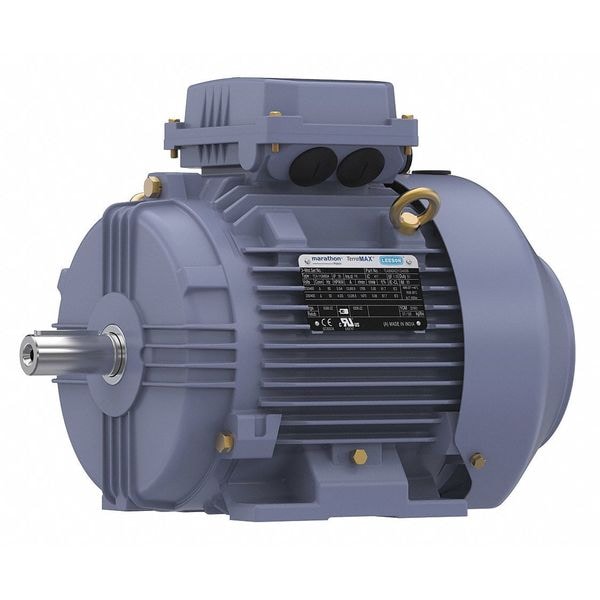

Marathon Metric Motor, 5 1/2 HP, 1,765 RPM, 230/460V TCA0042AE211GAA009 - main

Metric Motor, 5 1/2 HP, 1,765 RPM, 230/460V

  • Mfr # TCA0042AE211GAA009

  • Zoro # G8662462

product price:  $724.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
5 1/2
RPM Range
1701-1800
Voltage
230/460V AC
Frame
112M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TCA0042AE211GAA009
Zoro #
G8662462
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
60 mm
Manufacturers Warranty Length
1 yr
Shaft Dia.
28 mm
Overall Length
399 mm
Length Less Shaft
339 mm

Details

Item
Metric Motor
Motor Design
Three-Phase
HP
5 1/2
RPM Range
1701-1800
Voltage
230/460V AC
Frame
112M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
13.8/6.9 A
Max. Ambient Temp.
40 Degrees C
kW
4.0
Nominal Efficiency
91.7 %
Nameplate RPM
1765 rpm
CC Number
CC003A
Standards
CE, UL Recognized
Motor Bearings
Ball
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Frame Material
Cast Iron
Motor Application
General Purpose
Duty
Continuous
Hz
60/50 Hz
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Phase
Three
Duty Cycle
Continuous
Usable @ 200V
No
Motor Mounting Position
Horizontal
NEMA Design
N
Weight
125.7 lb
Usable @ 208V
No
No. of Speeds
1
Inverter Rated
Yes
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 1/2 HP, 4.0 kW, Nameplate RPM 1765 rpm, Frame 112M, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.8/6.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800
