Shop All AC Farm Duty Motors
Leeson

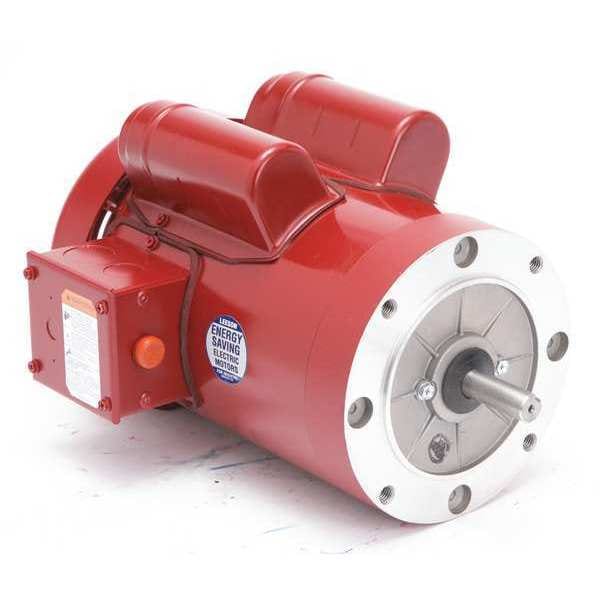

Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 1,725 Nameplate RPM, 56C Frame

original price: $546.56
14% off
new price: $467.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start/Run
  • Phase Single
  • HP 1 1/2
  • RPM Range 1,701-1,800
  • Voltage 115/208-230V AC
See all product information

Product Information

Dimensions

Overall Length 13 in
Length Less Shaft 11 1/8 in
Shaft Dia. 5/8 in
Shaft Length 1 7/8 in
Manufacturers Warranty Length 1 yr

Details

Item Farm Duty Motor
Motor Design Capacitor-Start/Run
Phase Single
HP 1 1/2
RPM Range 1,701-1,800
Voltage 115/208-230V AC
Frame 56C
Motor Service Factor 1.15
Motor Thermal Protection Manual
Motor Enclosure Design Totally Enclosed Fan-Cooled
Nameplate RPM 1,725
Motor Application Farm Duty
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face
Motor Shaft Design Keyed
Motor Sub Application High Torque
Motor Shaft Rotation CW/CCW
Standards CSA (LR2025), UL (E49747)
Frame Material Rolled steel
Motor Bearings Ball
Item - Farm Duty Motors Farm Duty Motor
Finish Enamel
Ins. Class F
Nominal Efficiency 79 %
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Hz 60 Hz
Duty Continuous
Motor Efficiency Group Standard Efficient
Max. Ambient Temperature 40 Degrees C
Full Load Amps 17.2/8.8-8.6 A
Capacitor Required Yes
Duty Cycle Continuous
Usable @ 208V Yes
Usable @ 200V No
Weight 40 lb
Max. Ambient Temp. 40 Degrees C
No. of Speeds 1

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.2/8.8-8.6 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Motor Mounting Position Horizontal
