  11. Capacitor-Start General Purpose Motor, 1 HP, 115/208-230V AC Voltage, 56 Frame, 1,725 Nameplate RPM
Shop All Capacitor Start AC Motors
Marathon Motors

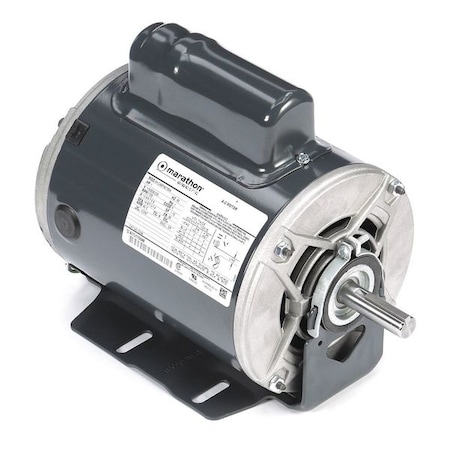

Capacitor-Start General Purpose Motor, 1 HP, 115/208-230V AC Voltage, 56 Frame, 1,725 Nameplate RPM

Hover or click to zoom Tap to zoom
Key Features
  • Item: General Purpose Motor
  • Motor Enclosure Design: Open Dripproof
  • Motor Mounting Type: Cradle Base
  • HP: 1
  • RPM Range: 1,701-1,800
  • Voltage: 115/208-230V AC
  • Frame: 56
  • Motor Thermal Protection: None
See full product details
$462.06
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

Dimensions

Shaft Length 1 7/8 in
Length Less Shaft 9 1/2 in
Overall Length 11 3/8 in
Manufacturers Warranty Length 1 yr

Details

Item General Purpose Motor
Motor Enclosure Design Open Dripproof
Motor Mounting Type Cradle Base
HP 1
RPM Range 1,701-1,800
Voltage 115/208-230V AC
Frame 56
Motor Thermal Protection None
Motor Service Factor 1.15
No. of Speeds 1
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application General Application
Nameplate RPM 1,725
Motor Frame Material Steel
Motor Mounting Position All Angle
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Motor Design Capacitor-Start
Standards CSA Certified, UL Listed
Hz 60

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 13.6/6.8-6.7, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Inverter Rated No
