Add Tax ExemptionSpecifications
Product Information
MFR #
048A11O756
Zoro #
G6199523
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8"
Shaft Length
4.06"
Length Less Shaft
8 3/16 in
Body Dia.
5-11/16"
Manufacturers Warranty Length
1 yr.
Overall Length
12-1/4"
Stud Size
#10-32
Description

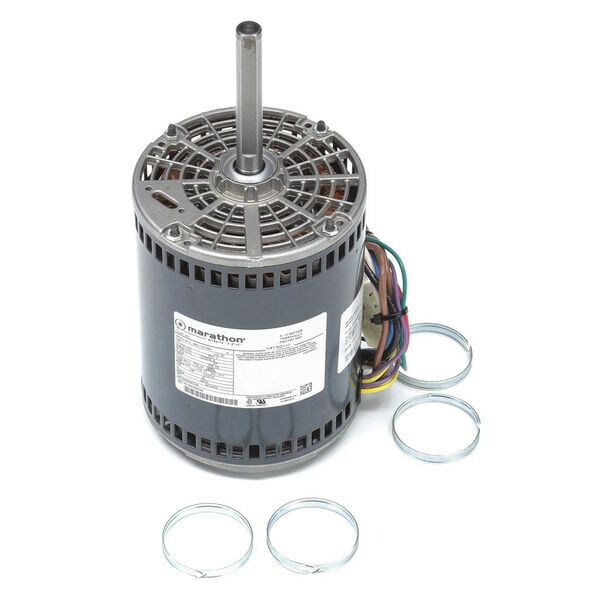

Direct Drive Motor, 1 Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 1000, No. of Speeds 3, Voltage 208-230, Full Load Amps 6.2, 48 Frame, 60 Hz, Motor Service Factor 1.00, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Motor Mounting Position All Angle
