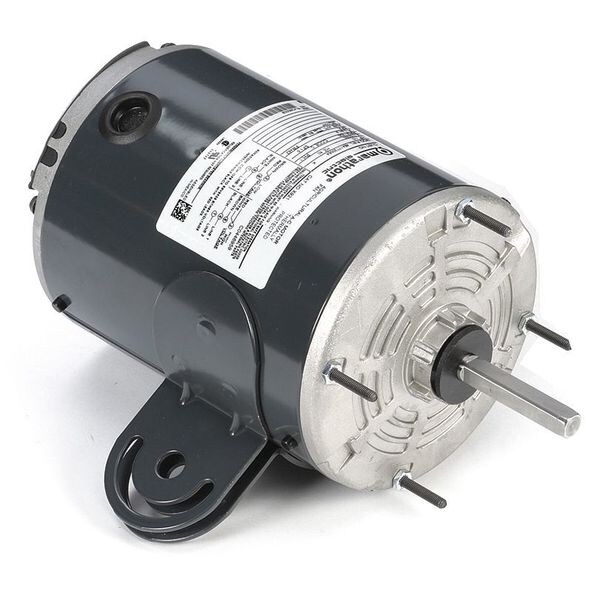

Pdstl Fan Mtr, PSC, TENV, 1/3HP, 1625rpm, 48Z (Discontinued)
- Mfr # 048A17T2006
- Zoro # G8796627
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
048A17T2006
Zoro #
G8796627
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
2 9/16 in
Body Dia.
5 3/4 in
Shaft Dia.
1/2 in
Overall Length
11 1/16 in
Manufacturers Warranty Length
1 yr
Description
Pedestal Fan Motor, Permanent Split Capacitor, Phase 1, 1/3 HP, 1001-1100 RPM Range, 1, Voltage 115/230, CW/CCW Motor Shaft Rotation, 48Z Frame, Totally Enclosed Nonventilated, Yoke Motor Mounting Type, Shaft Dia. 1/2 in, Shaft Length 2 9/16 in, Auto Motor Thermal Protection, 10 Ft. Cord and Pull Chain Switch No, Nameplate RPM 1625, Full Load Amps 3.8/1.9, Hz 60, 1.00 Motor Service Factor, Max. Ambient Temp. 40 Degrees C, Ins. Class B, Duty Continuous, Ball Motor Bearings, Body Dia. 5 3/4 in
