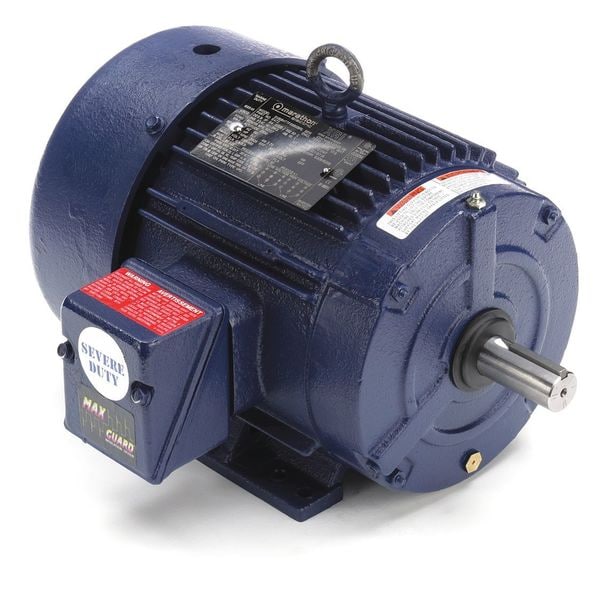

Severe Duty Mtr, 3-Ph, TEFC, 5 HP

  • Mfr # 184TTFCD6810

  • Zoro # G5707755

product price:
$
979.99
/ea
Additional $65.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TTFCD6810
Zoro #
G5707755
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 7/16 in
Overall Length
16 1/4 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Lead Length
3 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 1/8 in
Frame Size
184T
Wire Rope Length
16 1/4 in
Length
16 1/4 in

Details

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Frame
184T
Hazardous Location Class
Class I
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Item
Severe Duty Motor
RPM Group
3001-3600
No. of Speeds
1
Ins. Class
H
Motor Shaft Rotation
CW/CCW
Full Load Amps
12.0/6.0 A
Duty
Continuous
Motor Shaft Design
Keyed
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Motor Efficiency Group
NEMA Premium Efficient
Motor Service Factor
1.15
Motor Bearings
Ball
Motor Frame Material
Cast Iron
Nominal Efficiency
88.5 %
Standards
CE, CSA, IEEE45, UL Listed
Frame Material
Cast Iron
Includes
Max Guard Insulation, Shaft Key
CC Number
CC003A
Motor Application
Hazardous Location
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
3,510 RPM
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Temp. Code
T2B
Inverter Rated
Yes
Motor Mounting Position
Horizontal
Hazardous Location Division
Division II
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Duty Cycle
Continuous
Weight
32 lb
Hazardous Location Group
Group A, Group B, Group C, Group D
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Severe Duty Motor
Application
Hazardous Location
Insulation Class
H
Shaft Design
Keyed
Full Load Current @ 60 Hz
12.0/6.0 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Temperature Code
T2B
Number of Speeds
1
NEMA Design Class
B
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Conduit Box Position
F1/F2

Description

Severe Duty Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,510 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 12.0/6.0 A, 184T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Class I, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
