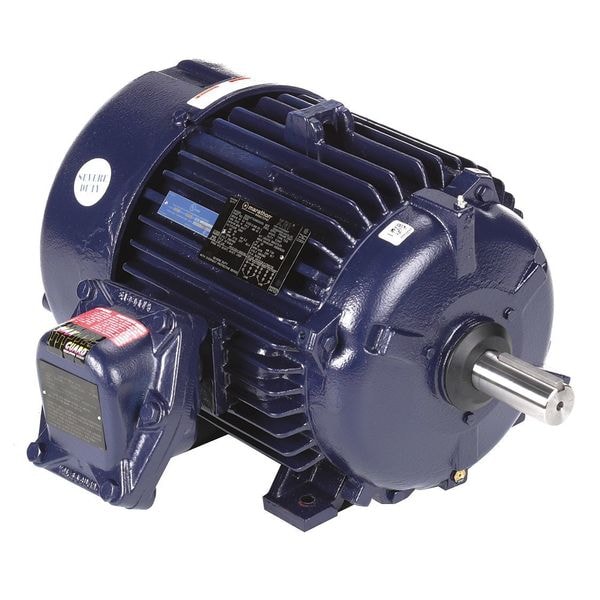

Hazardous Loc Mtr, 3 Ph, TEFC, 15 HP, T3B

  • Mfr # 254TTGCD6531
  • Zoro # G3555325
product price:
$
2,943.99
/ea
Additional $210.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
15 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
254TTGCD6531
Zoro #
G3555325
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
19 5/16 in
Overall Length
23 1/2 in
Lead Length
8 in
Shaft Length
4 3/16 in
Shaft Dia.
1 5/8 in
Manufacturers Warranty Length
3 yr
Frame Size
254T
Shaft Diameter
1 5/8 in
Wire Rope Length
23 1/2 in
Length
23 1/2 in

Details

Motor Design
Three-Phase
Phase
Three
HP
15 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
254T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Duty
Continuous
Motor Application
Hazardous Location
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.15
Item
Hazardous Location Motor
Motor Shaft Design
Keyed
Full Load Amps
37.5/18.8 A
Includes
(11) Leads in the Conduit Box
Temp. Code
T3B
Ins. Class
F
Nameplate RPM
1,775 RPM
Motor Efficiency Group
NEMA Premium Efficient
Motor Frame Material
Cast Iron
Max. Ambient Temp.
40 Degrees C
Standards
CSA
Motor Bearings
Ball
CC Number
CC003A
Frame Material
Cast Iron
NEMA Design
B
Nominal Efficiency
92.4 %
Green Certification or Other Recognition
NEMA Premium(R) Rated
Hazardous Location Division
Division I
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
328 lb
No. of Speeds
1
Conduit Box Location
Exterior
Hazardous Location Group
Group C, Group D, Group F, Group G
Motor Enclosure Type
Totally Enclosed Fan Cooled
Mounting Position
Horizontal
NEMA Design Class
B
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Manufacturers Warranty
3 yr
Frequency
60 Hz
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Temperature Code
T3B
Application
Hazardous Location
Full Load Current @ 60 Hz
37.5/18.8 A
Product Type
Hazardous Location Motor

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 1,775 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 37.5/18.8 A, 254T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
