Add Tax ExemptionSpecifications
Product Information
MFR #
5KH39QN5523
Zoro #
G6136916
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Length Less Shaft
7 3/8 in
Shaft Length
1 1/2 in
Overall Length
9 3/16 in
Description

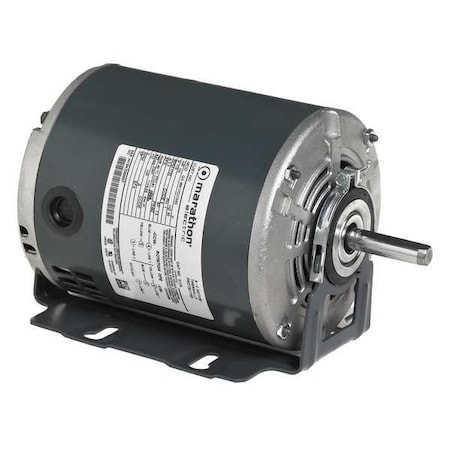

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.7 A, 56Z Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Resilient Base, Motor Mounting Position All Angle, Motor Frame Material Steel
