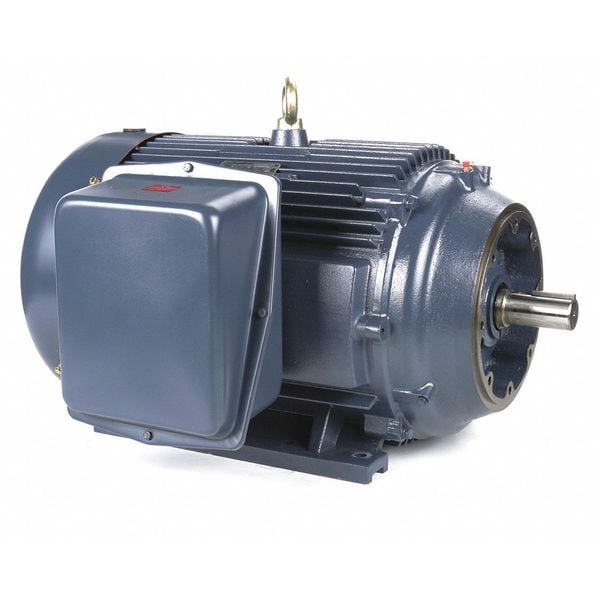

Marathon Three-Phase General Purpose Motor, 100 HP, 405TS Frame, 230/460V AC Voltage, 3575 rpm Nameplate RPM 405TSTFCD6003 - main

Three-Phase General Purpose Motor, 100 HP, 405TS Frame, 230/460V AC Voltage, 3575 rpm Nameplate RPM

  • Mfr # 405TSTFCD6003

  • Zoro # G9877332

product price:  $10,220.28
/ea
Item requires special delivery charges. A $390.00 per item surcharge will be applied.

Key Features

HP
100
Nameplate RPM
3575 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
222.0/111.0 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
405TSTFCD6003
Zoro #
G9877332
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
31 1/2 in
Overall Length
35 3/4 in
Shaft Dia.
2 1/8 in
Shaft Length
4 1/4 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
100
Nameplate RPM
3575 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
222.0/111.0 A
Frame
405TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.5 %
Standards
CSA Certified, UL Listed
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Conduit Box
Usable @ 200V
No
Usable @ 208V
No
Weight
950 lb
NEMA Design
B
Duty Cycle
Continuous
Capacitor Required
No
Inverter Rating
10:1

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 100 HP, Nameplate RPM 3575 rpm, Frame 405TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 222.0/111.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 3001-3600
