Shop MARATHON

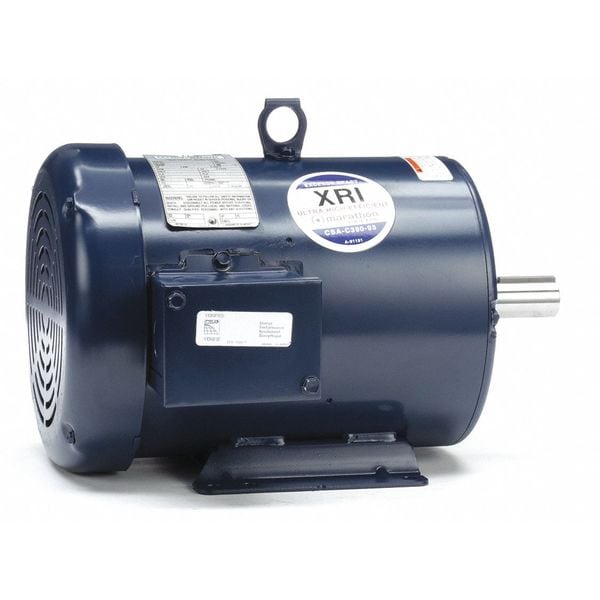

Three-Phase General Purpose Motor, 2 HP, 184T Frame, 230/460V AC Voltage, 1175 rpm Nameplate RPM

  • Mfr # 184TTFBD6080

  • Zoro # G5720434

product price:
$
862.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1175 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.3-6.4/3.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
184TTFBD6080
Zoro #
G5720434
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
2
Nameplate RPM
1175 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.3-6.4/3.2 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91.7 %
Standards
CE, CSA, UL
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Manufacturers Warranty
1 yr
Frequency
60/50 Hz
Product Type
General Purpose Motor
Insulation Class
F
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
7.3-6.4/3.2 A
Frame Material
Steel
Number of Speeds
1
Efficiency Rating
NEMA Premium Efficiency
Nameplate Voltage @ 50 Hz
190/380V AC
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate RPM @ 50 Hz
1,770 RPM
Bearing Type
Ball
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1175 rpm, Frame 184T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.3-6.4/3.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
