Shop MARATHON

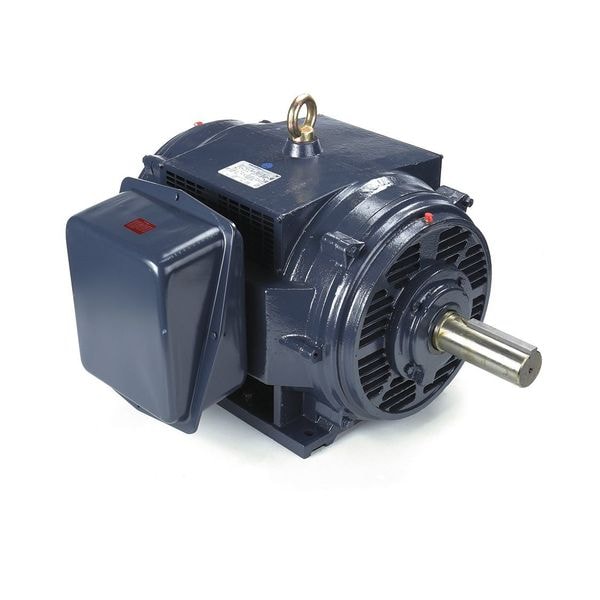

Three-Phase General Purpose Motor, 125 HP, 405T Frame, 460V AC Voltage, 1785 rpm Nameplate RPM

  • Mfr # 405TTDCD6060

  • Zoro # G9877515

product price:  $7,402.99
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
125
Nameplate RPM
1785 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
142.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
405TTDCD6060
Zoro #
G9877515
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
31 1/2 in
Overall Length
38 3/4 in
Shaft Dia.
2 7/8 in
Shaft Length
7 1/4 in
Manufacturers Warranty Length
1 yr
Frame Size
405T
Shaft Diameter
2 7/8 in
Wire Rope Length
38 3/4 in

Details

Item
General Purpose Motor
HP
125
Nameplate RPM
1785 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
142.0 A
Frame
405T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.4 %
Standards
CSA Certified, UL Recognized
CC Number
CC003A
Includes
Conduit Box
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
NEMA Design
B
Weight
1,303 lb
Capacitor Required
No
Inverter Rating
Inverter Rated
Number of Speeds
1
Insulation Class
F
Application
General Purpose
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Nameplate Voltage @ 50 Hz
230/460V AC
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
1,760 RPM
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
142.0 A
NEMA Design Class
B
Bearing Type
Ball
Product Type
General Purpose Motor

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 125 HP, Nameplate RPM 1785 rpm, Frame 405T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 142.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800, CSA Certified, UL Recognized
