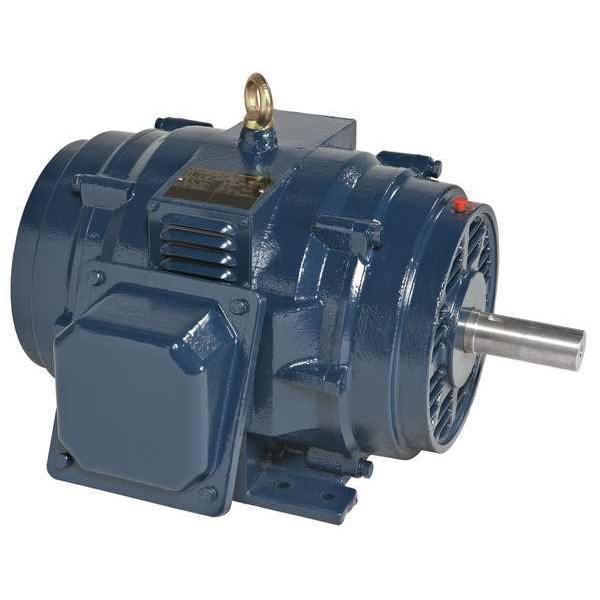

Marathon Three-Phase General Purpose Motor, 150 HP, 447T Frame, 460V AC Voltage, 1190 rpm Nameplate RPM 447TTDCD6077 - main

Three-Phase General Purpose Motor, 150 HP, 447T Frame, 460V AC Voltage, 1190 rpm Nameplate RPM

  • Mfr # 447TTDCD6077

  • Zoro # G9877454

product price:  $12,489.69
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
150
Nameplate RPM
1190 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
173.0 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
447TTDCD6077
Zoro #
G9877454
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
41 3/16 in
Overall Length
49 11/16 in
Shaft Dia.
3 3/8 in
Shaft Length
8 1/2 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
3 3/8 in
Frame Size
447T

Details

Item
General Purpose Motor
HP
150
Nameplate RPM
1190 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
173.0 A
Frame
447T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.4 %
Standards
CE Certified, CSA Certified, UL Listed
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
2,021 lb
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
NEMA Design
B
Capacitor Required
No
Inverter Rating
Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Shaft Design
Keyed
Nameplate Voltage @ 50 Hz
230/460V AC
Frequency
60 Hz
Product Type
General Purpose Motor
Application
General Purpose
Insulation Class
F
NEMA Design Class
B
Full Load Current @ 60 Hz
173.0 A
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Nameplate RPM @ 50 Hz
1,770 RPM
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 150 HP, Nameplate RPM 1190 rpm, Frame 447T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 173.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1,101-1,200
