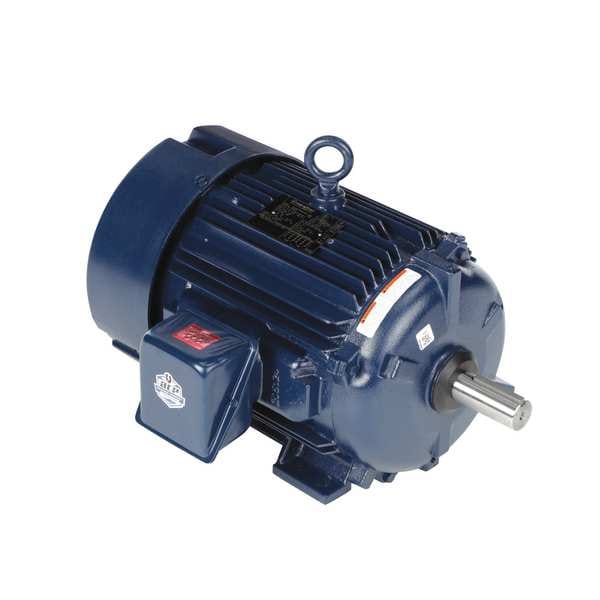

Marathon Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM 256TTFCD6070 - main

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM

  • Mfr # 256TTFCD6070

  • Zoro # G2162417

product price:  $2,269.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

HP
20
Nameplate RPM
1775 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
48.0/24.1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
256TTFCD6070
Zoro #
G2162417
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
21 1/4 in
Overall Length
25 1/4 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
1 yr
Frame Size
256T
Shaft Diameter
1 5/8 in

Details

Item
General Purpose Motor
HP
20
Nameplate RPM
1775 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
48.0/24.1 A
Frame
256T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.5 %
Standards
CSA, UL
CC Number
CC003A
Includes
AEGIS SGR Bearing Protection Rings
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
Not Usable at 208V
HP @ 50Hz
20 hp
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
1775 rpm
Voltage @ 50Hz
230/460
Duty Cycle
Continuous
Full Load Amps @ 50Hz
48/24.1 A
Service Factor @ 50Hz
1.15
Bearing Protection
AEGIS(R) Rings
Frequency
60/50 Hz
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Application
General Purpose
Nameplate Voltage @ 50 Hz
190/380V AC
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
48.0/24.1 A
Nameplate Horsepower @ 50 Hz
20 hp
Motor Enclosure Type
Totally Enclosed Fan Cooled
Number of Speeds
1
Insulation Class
F
Full Load Current @ 50 Hz
48/24.1 A
Nameplate RPM @ 50 Hz
1,425 RPM
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Service Factor @ 50 Hz
1.15
Product Type
General Purpose Motor

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1775 rpm, Frame 256T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 48.0/24.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1701-1800, CSA, UL
