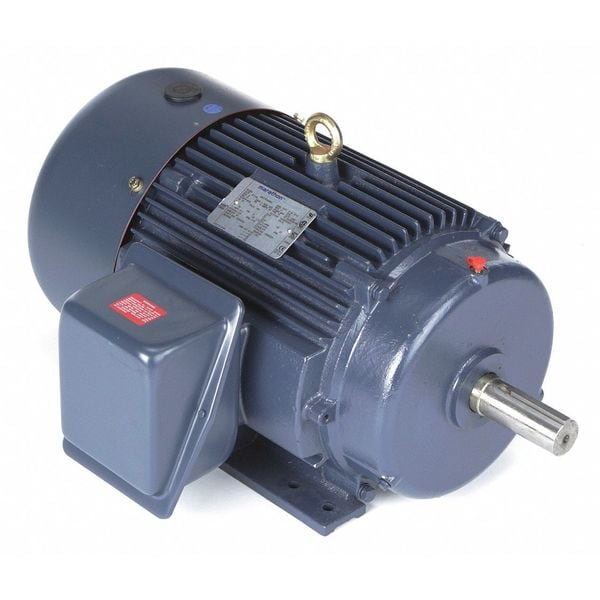

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 575V AC Voltage, 1,768 Nameplate RPM
Mfr # 256TTFCD6030
Zoro # G9815662
product price: $1,941.99
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.
Key Features
HP
20
Nameplate RPM
1,768
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
19.4 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
256TTFCD6030
Zoro #
G9815662
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
21 7/8 in
Overall Length
25 7/8 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,768, Frame 256T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
