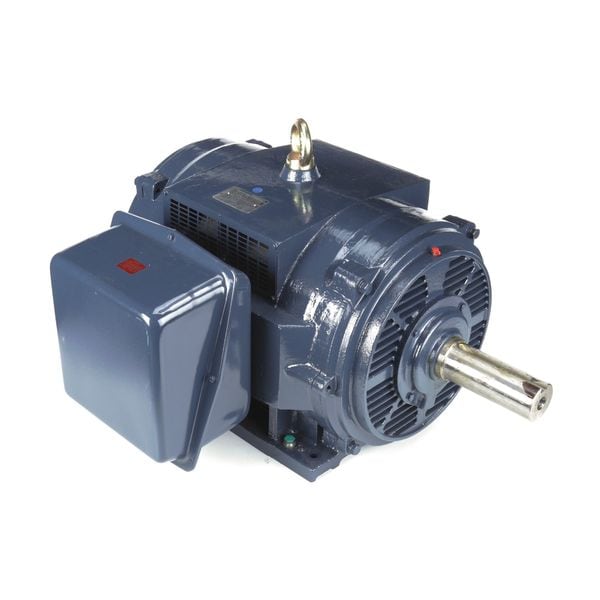

Three-Phase General Purpose Motor, 150 HP, 444T Frame, 460V AC Voltage, 1790 rpm Nameplate RPM

  • Mfr # 444TTDCD6060

  • Zoro # G9877481

product price:
$
9,860.99
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
150
Nameplate RPM
1790 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
168.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
444TTDCD6060
Zoro #
G9877481
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
150
Nameplate RPM
1790 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
168.0 A
Frame
444T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.8 %
Standards
CSA Certified, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Includes
Conduit Box
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
1,786 lb
Usable @ 208V
Not Usable at 208V
Part Winding Start Capable
Yes
NEMA Design
B
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Capacitor Required
No
Inverter Rating
Inverter Rated
Bearing Type
Ball
Application
General Purpose
Nameplate RPM @ 50 Hz
1,745 RPM
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
168.0 A
Manufacturers Warranty
1 yr
Insulation Class
F
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Nameplate Voltage @ 50 Hz
230/460V AC
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
NEMA Design Class
B
Product Type
General Purpose Motor

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 150 HP, Nameplate RPM 1790 rpm, Frame 444T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 168.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 1701-1800, CSA Certified, UL Recognized
