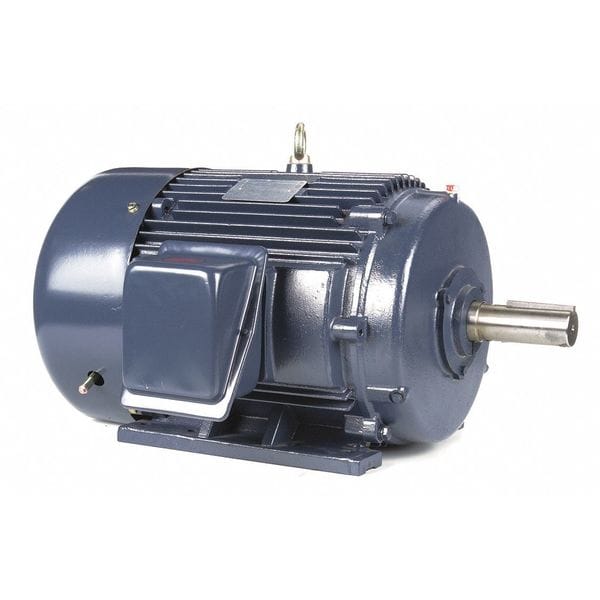

Three-Phase General Purpose Motor, 25 HP, 324T Frame, 230/460V AC Voltage, 1184 rpm Nameplate RPM

  • Mfr # 324TTFCD6076

  • Zoro # G9875765

product price:
$
3,603.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

HP
25
Nameplate RPM
1184 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
64.0/32.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
324TTFCD6076
Zoro #
G9875765
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
27 9/16 in
Overall Length
29 11/16 in
Shaft Dia.
2 1/8 in
Shaft Length
5 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
2 1/8 in
Frame Size
324T
Wire Rope Length
29 11/16 in
Length
29 11/16 in

Details

Item
General Purpose Motor
HP
25
Nameplate RPM
1184 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
64.0/32.0 A
Frame
324T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.4 %
Standards
CE, CSA, UL Listed
CC Number
CC003A
Includes
Conduit Box
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
1,136 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Capacitor Required
No
Inverter Rating
Inverter Rated
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
64.0/32.0 A
Shaft Design
Keyed
Product Type
General Purpose Motor
Nameplate RPM @ 50 Hz
1,185 RPM
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
NEMA Design Class
B
Nameplate Voltage @ 50 Hz
200/400V AC
Bearing Type
Ball
Insulation Class
F
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1184 rpm, Frame 324T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 64.0/32.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1,101-1,200
