Dayton

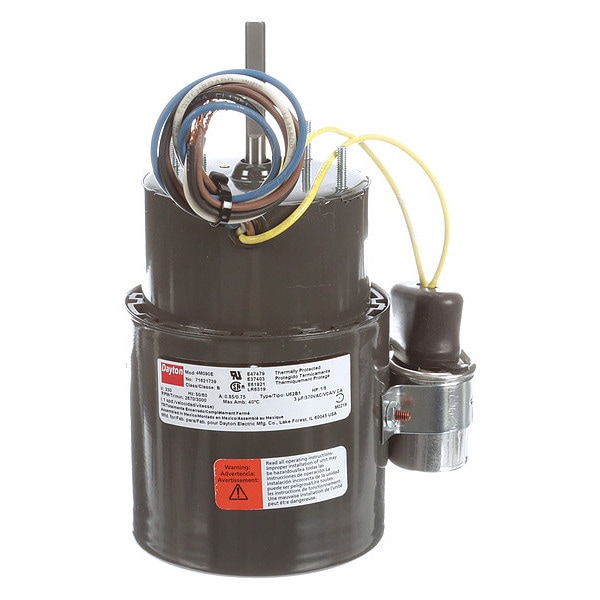

HVAC Motor, 1/8 HP, 3000 rpm, 230V, 3.3

product price: $120.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 230V AC
  • Nameplate RPM 3,000
  • Motor Enclosure Design Totally Enclosed Fan-Cooled
  • Number of Speeds 1
  • HP 1/8
See all product information

Product Information

Dimensions

Body Dia. 4 in
Cord Length 12 in
Shaft Dia. 5/16 in
Length Less Shaft 5 3/16 in
Shaft Length 2 5/16 in

Details

Voltage 230V AC
Nameplate RPM 3,000
Motor Enclosure Design Totally Enclosed Fan-Cooled
Number of Speeds 1
HP 1/8
RPM Range 1,801-3,000
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Mounting Type Stud
No. of Speeds 1
Motor Application HVAC/R
Phase Single
Hz 60/50 Hz
Stud/Base Mtg. Pattern 2 in x 2 in
Motor Bearings Sleeve
Frame 3.3
Capacitor Required Included
Motor Sub Application Direct Drive Fan/Blower
Max. Ambient Temp. 40 Degrees C
Number of Shafts 1
Item HVAC Motor
Motor Shaft Rotation CW/CCW
Full Load Amps 0.6 A
Motor Thermal Protection Auto
Ins. Class B
Mounting Stud Location 4/Shaft End
Motor Shaft Design Flat
Standards CSA Certified (244617), UL Recognized (E37403)
Mounting Pattern 2 x 2
Motor Design Permanent Split Capacitor
Duty Continuous
Motor Service Factor 1
Application OEM and Replacement Use In A Wide Variety of Fan and Blower
Usable @ 200V No
HP @ 50Hz 1/8
Motor Mounting Position All Angle
Voltage @ 50Hz 230V AC
Duty Cycle Continuous
Usable @ 208V No
Full Load Amps @ 50Hz 0.60 A
RPM @ 50Hz 3,000 RPM
Mounting Stud Pattern 2 in x 2 in
Service Factor @ 50Hz 1
Type OEM Replacement
Mounting Stud

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 230V AC, Full Load Amps 0.6 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60/50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
