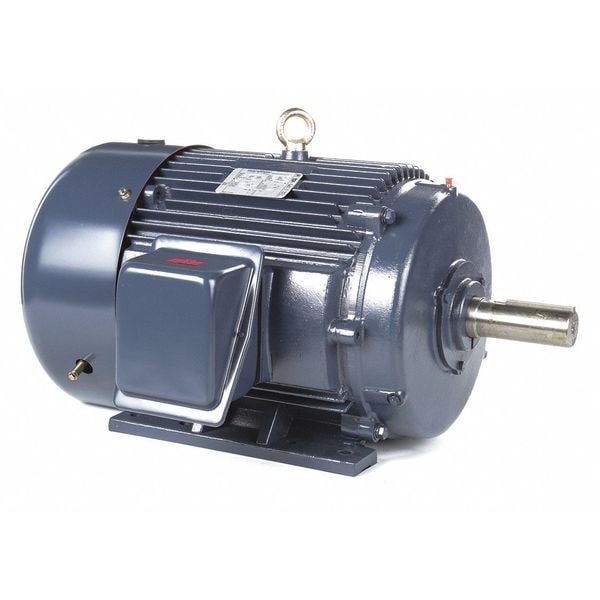

Three-Phase General Purpose Motor, 25 HP, 324T Frame, 575V AC Voltage, 1184 rpm Nameplate RPM
Mfr # 324TTFCD6080
Zoro # G9875756
product price:Â $3,481.99
/ea
Additional $160.00 delivery surcharge applies per item.
Key Features
HP
25
Nameplate RPM
1184 rpm
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
25.6 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 324TTFCD6080
- Zoro #
- G9875756
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Length Less Shaft
- 27 9/16 in
- Overall Length
- 29 11/16 in
- Shaft Dia.
- 2 1/8 in
- Shaft Length
- 5 1/4 in
- Manufacturers Warranty Length
- 1 yr
- Frame Size
- 324T
- Shaft Diameter
- 2 1/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1184 rpm, Frame 324T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Listed
