  6. Three-Phase General Purpose Motor, 3 HP, 213T Frame, 230/460V AC Voltage, 1183 rpm Nameplate RPM

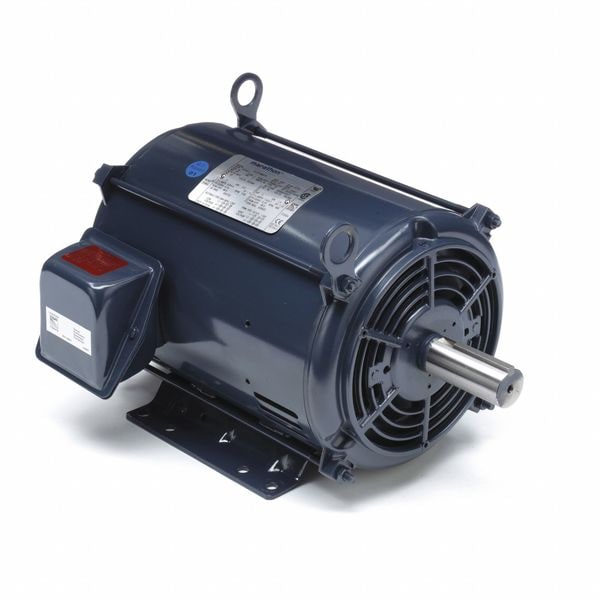

Marathon Three-Phase General Purpose Motor, 3 HP, 213T Frame, 230/460V AC Voltage, 1183 rpm Nameplate RPM 213TTDBD6076 - main

Three-Phase General Purpose Motor, 3 HP, 213T Frame, 230/460V AC Voltage, 1183 rpm Nameplate RPM

  • Mfr # 213TTDBD6076

  • Zoro # G5565287

product price:  $881.99
/ea
Sold in multiples of 2 for $1,763.98
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

HP
3
Nameplate RPM
1183 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.4/4.2 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
213TTDBD6076
Zoro #
G5565287
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 1/8 in
Overall Length
17 1/2 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1183 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.4/4.2 A
Frame
213T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Includes
Conduit Box
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
No
Usable @ 200V
No
Duty Cycle
Continuous
NEMA Design
B
Weight
120 lb
Inverter Rating
10:1

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1183 rpm, Frame 213T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.4/4.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA (LR2025), UL (E49747)
