Shop FASCO

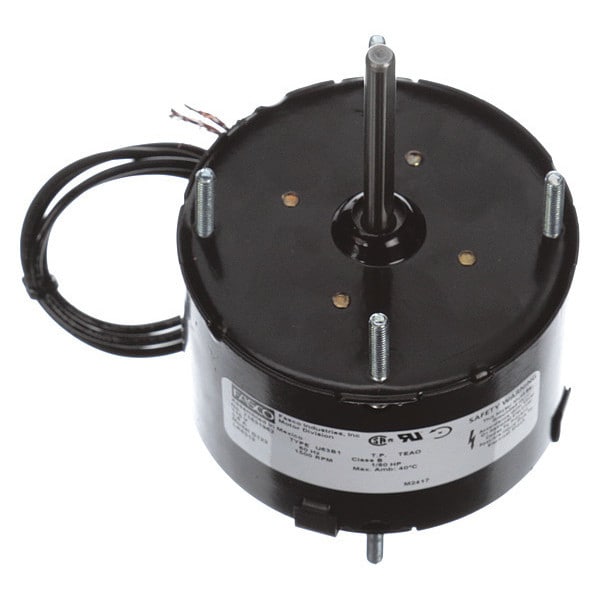

HVAC Motor, 1/80 HP, 1500 rpm, 115V, 3.3

  • Mfr # D123

  • Zoro # G6100403

product price:
$
67.79
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,500
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/80
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D123
Zoro #
G6100403
UPC #
663001024033
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/4 in
Body Dia.
3 5/16 in
Shaft Dia.
1/4 in
Length Less Shaft
2 11/16 in
Overall Length
4 3/4 in
Stud Size
#8-32
Bolt Circle Dia.
2 7/8 in
Lead Length
12 in
Frame Size
3.3
Body Diameter
3.3 in
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/4 in
Bolt Circle Diameter
2 7/8 in
Wire Rope Length
4 3/4 in
Length
4 3/4 in

Details

Voltage
115V AC
Nameplate RPM
1,500
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/80
RPM Range
1,401-1,500
Motor Bearings
Sleeve
Full Load Amps
0.6 A
Motor Shaft Rotation
CCWSE
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Mounting Stud Location
4/Both Ends
Duty
Continuous
Motor Application
HVAC/R
Number of Shafts
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Application
Fan/Blower
Mounting Pattern
2-7/8 x 2-7/8
Standards
CSA Certified, UL Recognized
Motor Sub Application
Direct Drive Fan/Blower
Motor Design
Shaded Pole
Ins. Class
B
Item
Fan and Blower Motor
No. of Speeds
1
Hz
60 Hz
Motor Mounting Type
Ring/Stud
Motor Shaft Design
Flat
Frame
3.3
Motor Service Factor
1
Phase
Single
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Auto
Capacitor Required
Capacitor Not Required
Motor Mounting Position
All Angle
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Weight
3 lb
Mounting Holes
(8) #8-32
Mounting
Stud
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Wattage
10 W
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Shaft Design
Flat
Bearing Type
Sleeve
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Sub Application
General Purpose
Frame Material
Steel
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
0.60 A

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/80 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
