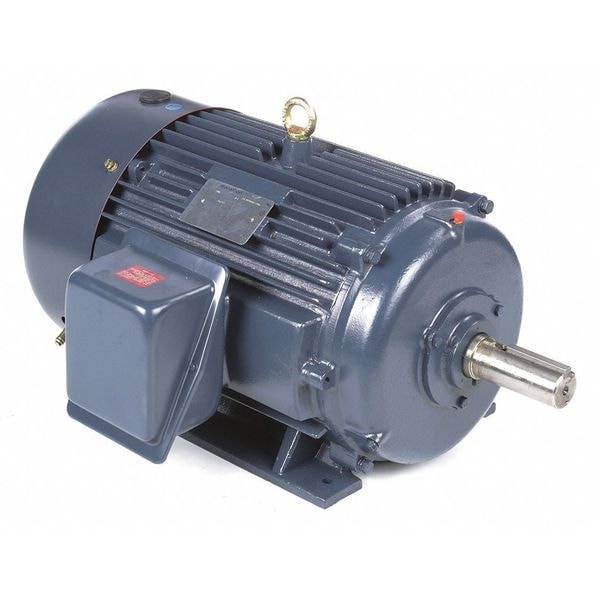

Three-Phase General Purpose Motor, 30 HP, 286T Frame, 575V AC Voltage, 1,770 Nameplate RPM
Mfr # 286TTFCD6030
Zoro # G9815626
product price: $2,557.99
/ea
Additional $160.00 delivery surcharge applies per item.
Key Features
HP
30
Nameplate RPM
1,770
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
28.4 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
286TTFCD6030
Zoro #
G9815626
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
23 1/2 in
Overall Length
28 1/8 in
Shaft Dia.
1 7/8 in
Shaft Length
4 5/8 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 1,770, Frame 286T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 28.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
