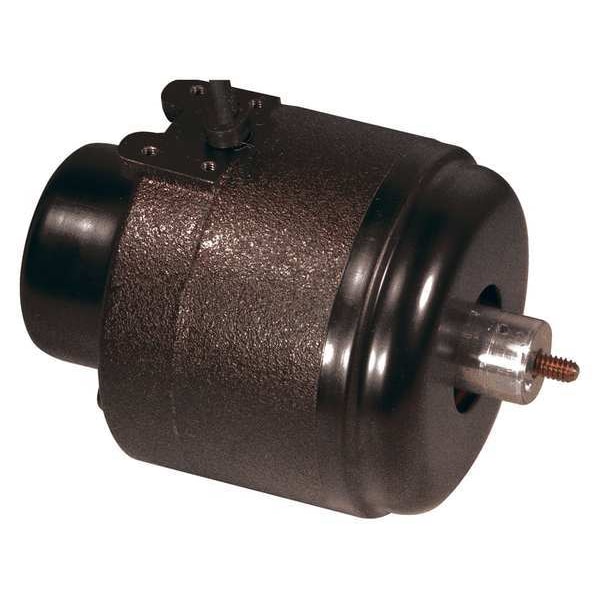

Unit Bearing Motor, 1/15 hp

  • Mfr # ESP-OL50EM26H
  • Zoro # G0316639
product price:
$
125.99
/ea
Free Shipping & Returns

Key Features

Motor Sub Application
Condenser Fan
Output Watts
50 W
HP
1/15
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ESP-OL50EM26H
Zoro #
G0316639
UPC #
-
Country of Origin
United States
Motor Sub Application
Condenser Fan
Output Watts
50 W
HP
1/15
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Phase
Single
Voltage
230V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,500
Frame
Non-Standard
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Shaft Design
Threaded
Motor Enclosure Design
Open Air-Over
Plug Type
Round 2 Pin
Motor Bearings
Unit
Hz
50/60 Hz
Motor Frame Material
Cast Iron
Ins. Class
A
Motor Application
HVAC/R
Motor Design
Shaded Pole
Item
Unit Bearing Motor
Motor Thermal Protection
Auto
Ring to Ring Center
1 7/16 in
Frame Material
Cast Iron
Standards
Meets UL and Canadian Standards for Safety
Includes
Mounting Parts
Full Load Amps
0.85 A
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Features
Cool running, Quiet Operation, Thick Film Lubricating System for Long Life and Dependability
Usable @ 208V
Not Usable at 208V
Number of Speeds
1
Bearing Type
Unit
Sub Application
Unit Bearing
Full Load Current @ 60 Hz
0.85 A
Motor Enclosure Type
Open Air Over
Application
Condenser Fan
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Wattage
50 W
Insulation Class
A
Shaft Design
Threaded
Frequency
60/50 Hz
Drive Type
Direct Drive
Product Type
Unit Bearing Motor

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 230V AC, 0.85 A Full Load Amps, Non-Standard Frame, Output Watts 50 W, 60/50 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Rigid Base, Motor Frame Material Cast Iron, Motor Mounting Position Horizontal or Vertical Shaft Up
