Shop MARATHON

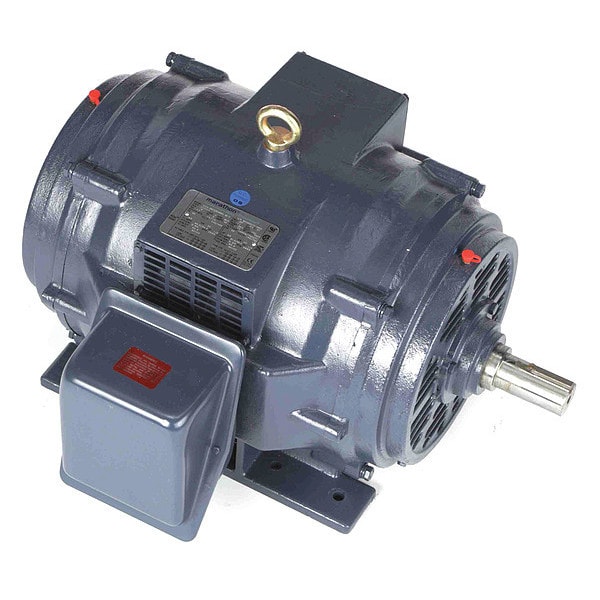

Three-Phase General Purpose Motor, 40 HP, 286TS Frame, 230/460V AC Voltage, 3562 rpm Nameplate RPM

  • Mfr # 286TSTDBD6001

  • Zoro # G4880878

product price:  $2,530.23
/ea
Additional $105.00 delivery surcharge applies per item.
See details

Key Features

HP
40
Nameplate RPM
3562 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
93.0/46.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
286TSTDBD6001
Zoro #
G4880878
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
22 1/2 in
Overall Length
25 3/4 in
Shaft Dia.
1 5/8 in
Shaft Length
3 1/4 in
Manufacturers Warranty Length
1 yr
Frame Size
286TS
Shaft Diameter
1 5/8 in

Details

Item
General Purpose Motor
HP
40
Nameplate RPM
3562 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
93.0/46.5 A
Frame
286TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
92.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
411 lb
Inverter Rating
Inverter Rated
Application
General Purpose
Bearing Type
Ball
Shaft Design
Keyed
Full Load Current @ 60 Hz
93.0/46.5 A
Nameplate Voltage @ 50 Hz
190/380V AC
Manufacturers Warranty
1 yr
Product Type
General Purpose Motor
Insulation Class
F
Efficiency Rating
NEMA Premium Efficiency
Number of Speeds
1
NEMA Design Class
B
Mounting Position
Horizontal
Nameplate RPM @ 50 Hz
1,180 RPM
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 40 HP, Nameplate RPM 3562 rpm, Frame 286TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 93.0/46.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Recognized
