Shop MARATHON

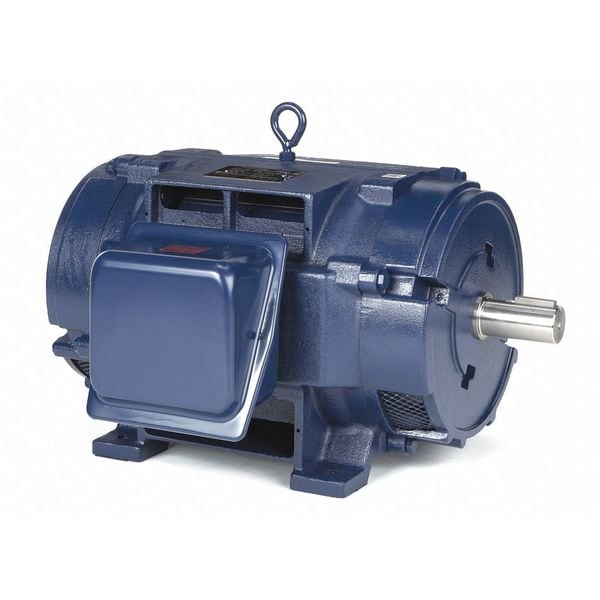

Three-Phase General Purpose Motor, 40 HP, 324TS Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM

  • Mfr # 324TSTDBD6026

  • Zoro # G9876115

product price:
$
2,615.10
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

HP
40
Nameplate RPM
1780 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
95.5/47.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
324TSTDBD6026
Zoro #
G9876115
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
40
Nameplate RPM
1780 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
95.5/47.5 A
Frame
324TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.8 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Weight
525 lb
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Capacitor Required
No
Inverter Rating
Inverter Rated
Frequency
60 Hz
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Open Drip Proof
Manufacturers Warranty
1 yr
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Product Type
General Purpose Motor
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Full Load Current @ 60 Hz
95.5/47.5 A
Frame Material
Steel
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
190/380V AC, 220/415V AC
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
1,445/1,450 RPM
Number of Speeds
1

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 40 HP, Nameplate RPM 1780 rpm, Frame 324TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 95.5/47.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
