Shop MARATHON

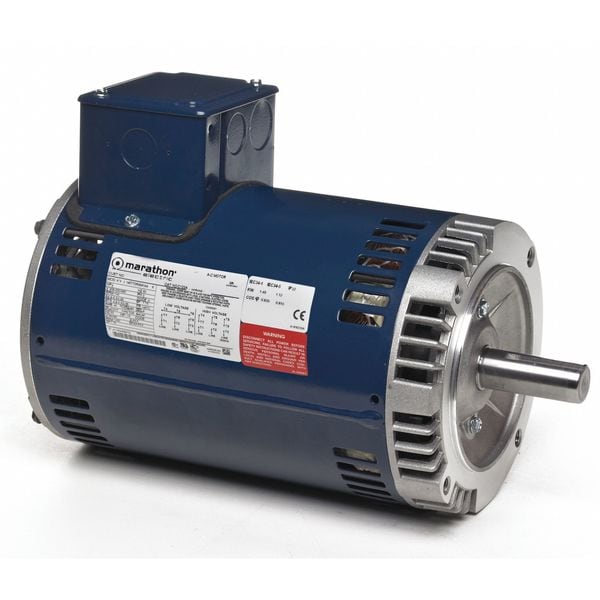

Three-Phase General Purpose Motor, 5 HP, 182TC Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM

  • Mfr # 182TTDBD6004

  • Zoro # G7418839

product price:
$
794.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
3500 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
12.4/6.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTDBD6004
Zoro #
G7418839
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 in
Overall Length
13 3/4 in
Shaft Dia.
1 1/8 in
Shaft Length
2 5/8 in
Manufacturers Warranty Length
1 yr
Frame Size
182TC
Shaft Diameter
1 1/8 in
Wire Rope Length
13 3/4 in
Length
13 3/4 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
3500 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
12.4/6.2 A
Frame
182TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Inverter Rated
No
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
3500 rpm
Duty Cycle
Continuous
HP @ 50Hz
5 hp
Full Load Amps @ 50Hz
12.4/6.2 A
Service Factor @ 50Hz
1.15
Usable @ 208V
Not Usable at 208V
Voltage @ 50Hz
230/460
Number of Speeds
1
Frequency
60/50 Hz
Insulation Class
F
Full Load Current @ 50 Hz
12.4/6.2 A
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Mounting Position
Horizontal
Nameplate Voltage @ 50 Hz
190/380V AC
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Nameplate RPM @ 50 Hz
1,465/1,470 RPM
Bearing Type
Ball
Nameplate Service Factor @ 50 Hz
1.15
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof
Inverter Rating
Not Inverter Rated
Nameplate Horsepower @ 50 Hz
5 hp
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
12.4/6.2 A

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 3500 rpm, Frame 182TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 12.4/6.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CE, CSA (LR2025), UL (E49747)
