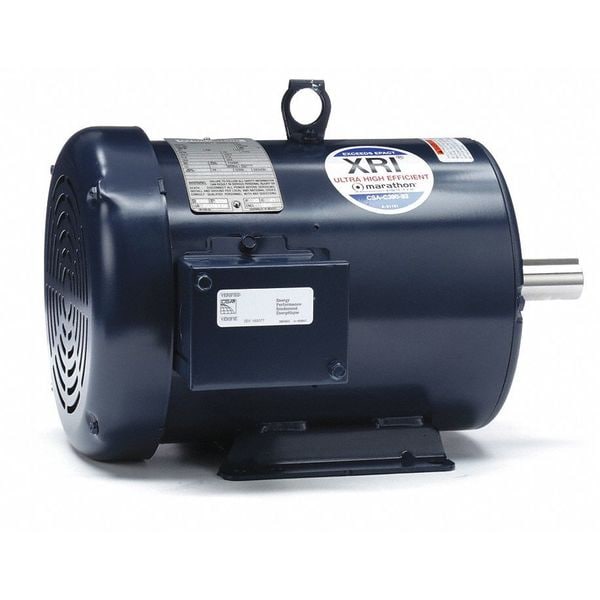

Marathon Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1755 rpm Nameplate RPM 184TTFBD6027 - main

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1755 rpm Nameplate RPM

  • Mfr # 184TTFBD6027

  • Zoro # G7496693

product price:  $736.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
1755 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.0/6.5 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
184TTFBD6027
Zoro #
G7496693
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 5/16 in
Overall Length
16 1/16 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr
Frame Size
184T
Shaft Diameter
1 1/8 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
1755 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.0/6.5 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA, UL
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Includes
Shaft Key
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Application
General Purpose
Product Type
General Purpose Motor
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Insulation Class
F
Manufacturers Warranty
1 yr
Frequency
60/50 Hz
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Nameplate RPM @ 50 Hz
1,770 RPM
Inverter Rating
Inverter Rated
Full Load Current @ 60 Hz
13.0/6.5 A
Frame Material
Steel
Number of Speeds
1
Nameplate Voltage @ 50 Hz
190/380V AC
Ambient Temperature - Maximum
40 Degrees C

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1755 rpm, Frame 184T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.0/6.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
