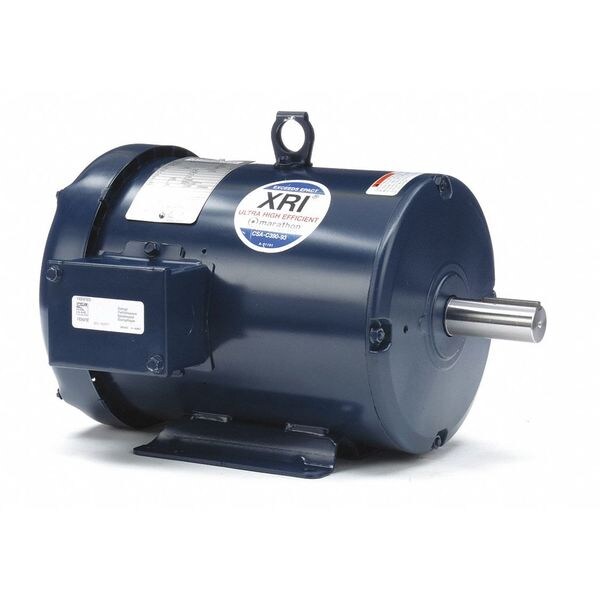

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3495 rpm Nameplate RPM

  • Mfr # 184TTFBD6002

  • Zoro # G5588545

product price:
$
833.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
3495 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.0-12.0/6.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
184TTFBD6002
Zoro #
G5588545
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
5
Nameplate RPM
3495 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.0-12.0/6.0 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA, UL
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
3,520 RPM
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.25
Inverter Rating
Inverter Rated
Frequency
60/50 Hz
Insulation Class
F
Number of Speeds
1
Full Load Current @ 60 Hz
13.0-12.0/6.0 A
Manufacturers Warranty
1 yr
Nameplate Voltage @ 50 Hz
190/380V AC
Shaft Design
Keyed
Frame Material
Steel
Product Type
General Purpose Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3495 rpm, Frame 184T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.0-12.0/6.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
