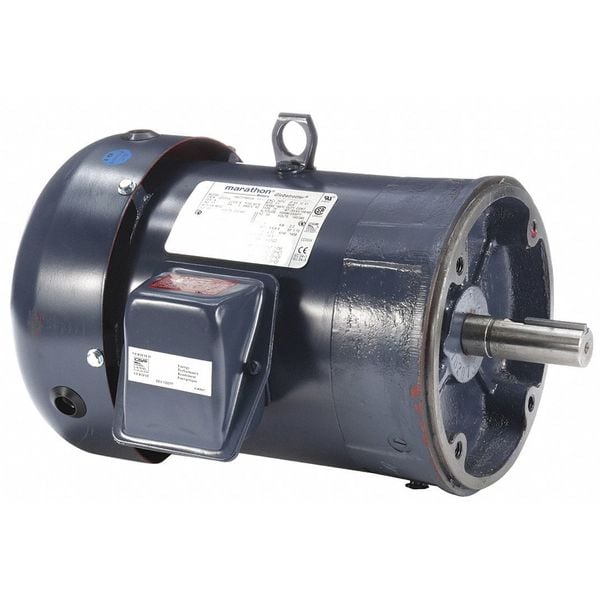

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM

The MARATHON MOTORS - 184TTFBD6029 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This type of motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate different types of machinery, making it versatile across various sectors from manufacturing lines to HVAC systems.

Key Features of the MARATHON MOTORS - 184TTFBD6029:

• CC Number: The unique identifier assigned by EASA for classifying and tracking this motor based on its design, specifications, and performance characteristics.
• Duty Cycle: A continuous duty cycle is a specification that describes the motor's ability to operate continuously under certain conditions.
• Frame: The structural component that houses and supports the internal parts conforms to standard specifications for compatibility (184TC).
• Full Load Amps: Draws a maximum current of 13.2/6.6 A when operating at full capacity which is crucial for determining power supply requirements.
• Green Certification or Other Recognition: NEMA Premium(R) Rated signifies that it meets certain environmental and energy efficiency standards.
• Inverter Rated: Yes - compatible with a variable frequency drive for potential speed & torque adjustments.
