  6. Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1766 rpm Nameplate RPM

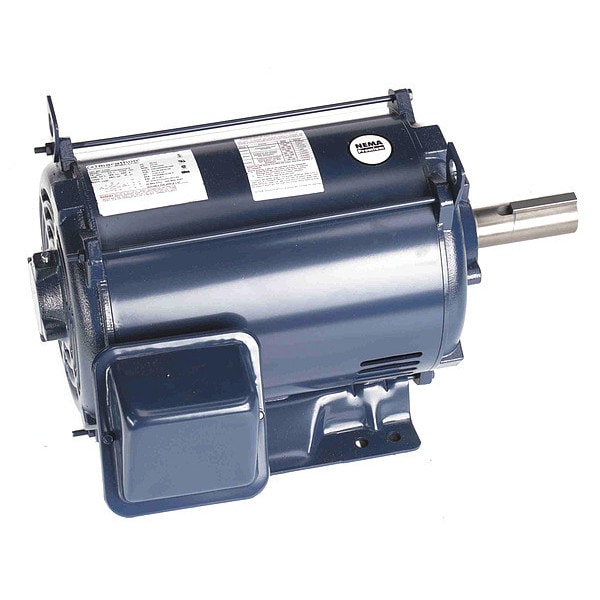

Marathon Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1766 rpm Nameplate RPM 213TTDBD6026 - main

Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1766 rpm Nameplate RPM

  • Mfr # 213TTDBD6026

  • Zoro # G7410168

product price:  $900.99
/ea
Free Shipping & Returns

Key Features

HP
7 1/2
Nameplate RPM
1766 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
19.8/9.9 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
213TTDBD6026
Zoro #
G7410168
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 1/8 in
Overall Length
17 1/2 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
1766 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
19.8/9.9 A
Frame
213T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91 %
Standards
CSA (LR2025), UL (E49747)
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
No
Usable @ 208V
No
NEMA Design
B
Duty Cycle
Continuous
Weight
133 lb
Inverter Rating
10:1

Description

Here is the revised description:

The MARATHON MOTORS - 213TTDBD6026 is a General Purpose Motor, falling under the category of 3-Phase AC Motors. This motor is commonly used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate different types of machinery across various sectors, from manufacturing lines to HVAC systems.

Key Features of the MARATHON MOTORS - 213TTDBD6026:

  • CC Number: The unique identifier assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: This motor has a continuous duty cycle, suitable for certain industrial applications.
  • Frame: Its frame size conforms to standard specifications ensuring compatibility with various setups.
  • Full Load Amps: Operating at maximum current when at full capacity aids in determining power supply requirements for safe operation.
  • NEMA Premium(R) Rated: Acknowledged as meeting environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
  • Inverter Rated: Compatible with variable frequency drives for potential control over speed and torque. Performance may vary based on usage conditions.
