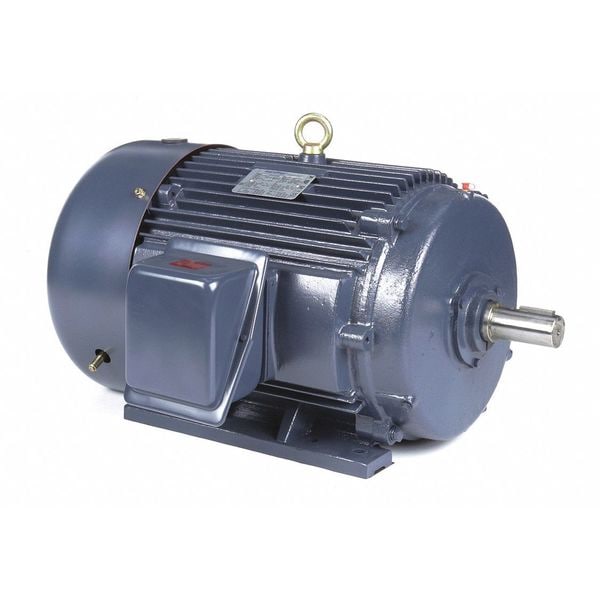

Three-Phase General Purpose Motor, 50 HP, 326TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM

  • Mfr # 326TSTFCD6001

  • Zoro # G9875747

product price:
$
4,151.04
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

HP
50
Nameplate RPM
3568 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
113.0/56.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
326TSTFCD6001
Zoro #
G9875747
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
24 7/16 in
Overall Length
28 3/16 in
Shaft Dia.
1 7/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
1 yr
Frame Size
326TS
Shaft Diameter
1 7/8 in
Wire Rope Length
28 3/16 in
Length
28 3/16 in

Details

Item
General Purpose Motor
HP
50
Nameplate RPM
3568 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
113.0/56.5 A
Frame
326TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.8 %
Standards
CE, CSA, UL Listed
CC Number
CC003A
Motor Thermal Protection
None
Includes
Conduit Box
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Weight
622 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Capacitor Required
No
Inverter Rating
Inverter Rated
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
Nameplate RPM @ 50 Hz
1,785 RPM
Shaft Design
Keyed
NEMA Design Class
B
Number of Speeds
1
Full Load Current @ 60 Hz
113.0/56.5 A
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Voltage @ 50 Hz
230/460V AC
Bearing Type
Ball
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 50 HP, Nameplate RPM 3568 rpm, Frame 326TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 113.0/56.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 3001-3600
