  11. Capacitor-Start Belt Drive Motor, 1/2 HP, 115/208-230V AC Voltage, 56H Frame, 1,725 Nameplate RPM
Shop All Capacitor Start AC Motors
Dayton

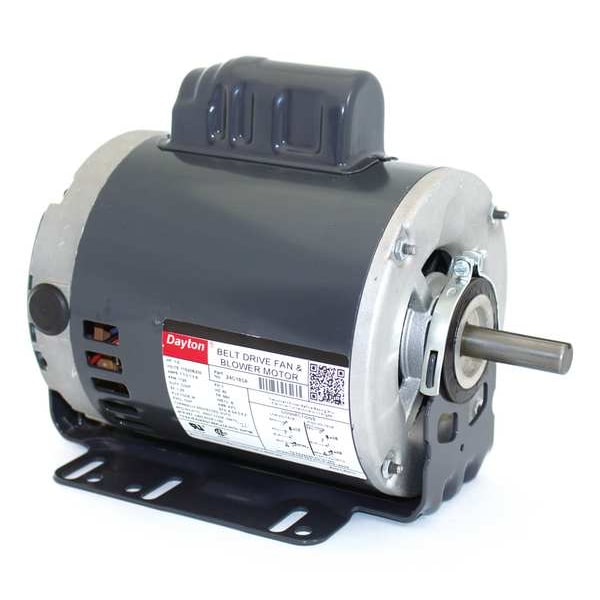

Capacitor-Start Belt Drive Motor, 1/2 HP, 115/208-230V AC Voltage, 56H Frame, 1,725 Nameplate RPM

product price: $294.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Enclosure Design Open Dripproof
  • Motor Mounting Type Cradle Base
  • HP 1/2
  • RPM Range 1,701-1,800
  • Voltage 115/208-230V AC
See all product information

Product Information

Dimensions

Shaft Length 1 7/8 in
Body Dia. 6 1/2 in
Length Less Shaft 9 7/16 in
Manufacturers Warranty Length 1 yr
Shaft Dia. 5/8 in
Overall Length 11 5/16 in
Resilient Ring Dia. 2 1/2 in

Details

Item Belt Drive Motor
Motor Enclosure Design Open Dripproof
Motor Mounting Type Cradle Base
HP 1/2
RPM Range 1,701-1,800
Voltage 115/208-230V AC
Frame 56H
Motor Thermal Protection Auto
Motor Service Factor 1.25
No. of Speeds 1
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application HVAC/R
Motor Sub Application Belt Drive Fan/Blower
Nameplate RPM 1,725
Motor Frame Material Steel
Motor Mounting Position All Angle
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Motor Design Capacitor-Start
Standards CE, CSA Certified, UL Recognized
Hz 60 Hz
Frame Material Steel
Phase Single
Motor Bearings Ball
Full Load Amps 7.7/3.7-3.8 A
Ins. Class B
Duty Continuous
Max. Ambient Temp. 104 Degrees F
Nominal Efficiency 65.9 %
Duty Cycle Continuous

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 7.7/3.7-3.8 A Full Load Amps, 56H Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel, Shaft Dia. 5/8 in
