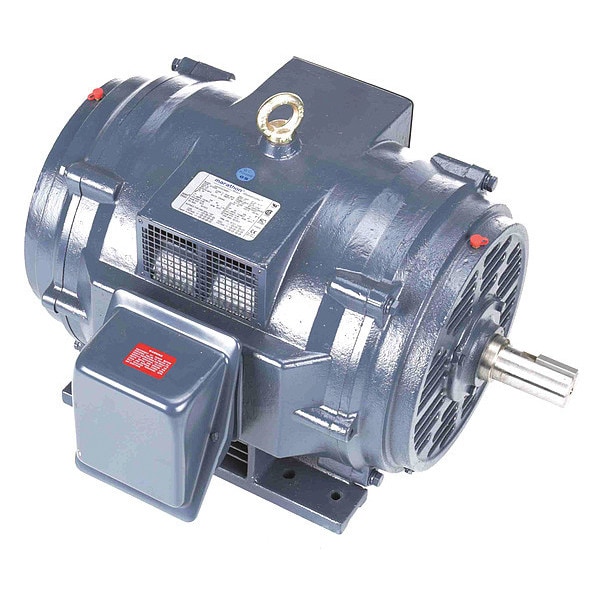

Marathon Three-Phase General Purpose Motor, 60 HP, 364TS Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM 364TSTDBD6060 - main
Shop MARATHON

Three-Phase General Purpose Motor, 60 HP, 364TS Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM

  • Mfr # 364TSTDBD6060

  • Zoro # G4852169

product price:  $4,344.99
/ea
Item requires special delivery charges. A $160.00 per item surcharge will be applied.

Key Features

HP
60
Nameplate RPM
1782 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
140.0/70.0 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
364TSTDBD6060
Zoro #
G4852169
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
27 15/16 in
Overall Length
31 11/16 in
Shaft Dia.
1 7/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
60
Nameplate RPM
1782 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
140.0/70.0 A
Frame
364TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95 %
Standards
CSA Certified, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
No
Usable @ 208V
No
Duty Cycle
Continuous
NEMA Design
B
Weight
738 lb
Inverter Rating
10:1

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 60 HP, Nameplate RPM 1782 rpm, Frame 364TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 140.0/70.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1701-1800, CSA Certified, UL Recognized
