Shop LEESON

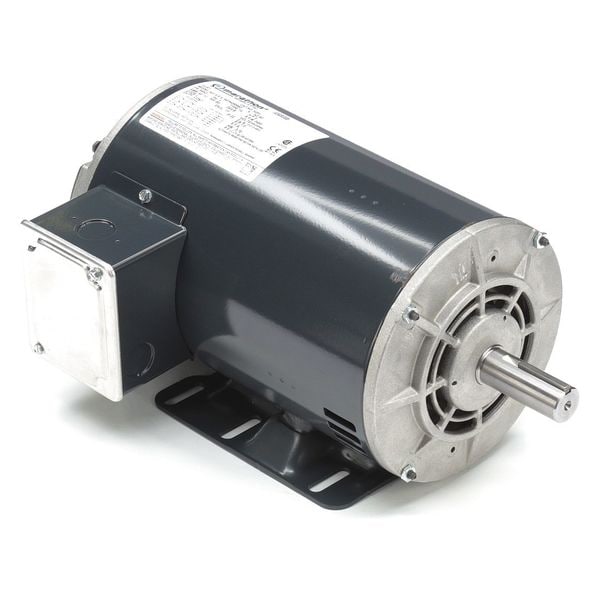

Definite Purpose AC Motor, 5 hp

  • Mfr # 056T34D5364
  • Zoro # G6171331
product price:
$
844.99
/ea
Free Shipping & Returns

Key Features

Frame
56HZ
HP
5 HP
Motor Application
OEM Replacement
Motor Design
Squirrel Cage Induction Run
Motor Enclosure Design
Drip Proof
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
056T34D5364
Zoro #
G6171331
UPC #
-
Country of Origin
Mexico
Frame
56HZ
HP
5 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Squirrel Cage Induction Run
Motor Enclosure Design
Drip Proof
Motor Mounting Type
Rigid Base
Motor Shaft Rotation
Reversible
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Automatic
Nameplate RPM
3450 rpm
No. of Speeds
1
Number of Shafts
1
Phase
3
RPM Range
3001-3600
Voltage
208-230/460V
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
13.5-12.4/6.2A
Capacitor Required
No
Standards
UL Recognized (E6312), CSA Certified (LR2025)
Motor Shaft Design
NEMA 145T
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
50 lb
Motor Frame Material
Steel
Conduit Box Location
Exterior
Conduit Box Position
F1
Usable @ 208V
Usable at 208V
Motor Mounting Position
Horizontal
Rotation
CW/CCW
Mounting
Rigid Base
Number of Speeds
1
Insulation Class
B
Compatible Brand
Leeson
Nameplate Service Factor @ 60 Hz
1
Sub Application
Fan/Blower
Full Load Current @ 60 Hz
13.5-12.4/6.2 A
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball

Description

Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 13.5-12.4/6.2 A, 56HZ Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
