Shop MARATHON

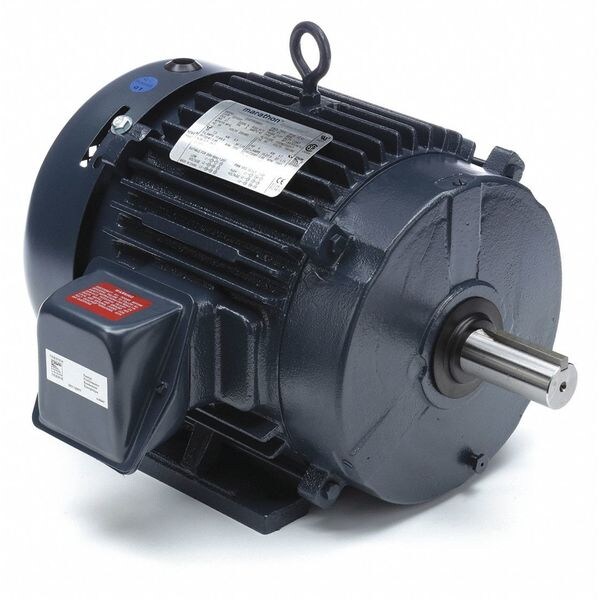

Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 3510 rpm Nameplate RPM

  • Mfr # 213TTFCD6001

  • Zoro # G9815872

product price:  $981.87
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

HP
7 1/2
Nameplate RPM
3510 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.4/9.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213TTFCD6001
Zoro #
G9815872
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
15 1/8 in
Overall Length
18 1/2 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 3/8 in
Frame Size
213T
Wire Rope Length
18 1/2 in

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
3510 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.4/9.2 A
Frame
213T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
90.2 %
Standards
CE, CSA, UL Listed
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
NEMA Design
B
Service Factor @ 50Hz
1.15
Voltage @ 50Hz
230/460
Full Load Amps @ 50Hz
18.4/9.2 A
HP @ 50Hz
7 1/2 hp
Weight
148 lb
RPM @ 50Hz
3510 rpm
Usable @ 208V
Not Usable at 208V
Capacitor Required
No
Inverter Rating
Inverter Rated
Frequency
60/50 Hz
Full Load Current @ 60 Hz
18.4/9.2 A
Nameplate Horsepower @ 50 Hz
7 1/2 hp
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Nameplate RPM @ 50 Hz
2,875/2,890 RPM
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
General Purpose
Nameplate Voltage @ 50 Hz
190/380V AC, 220/415V AC
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 50 Hz
1.15
Bearing Type
Ball
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Number of Speeds
1
Efficiency Rating
NEMA Premium Efficiency
Full Load Current @ 50 Hz
18.4/9.2 A

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 3510 rpm, Frame 213T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 18.4/9.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600
