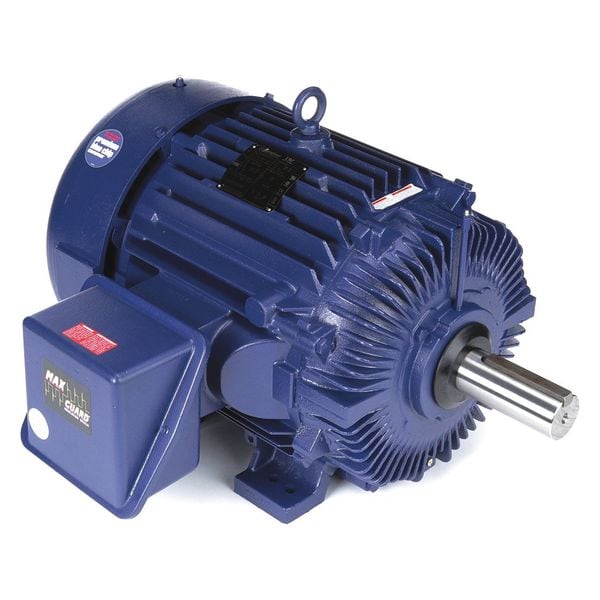

Three-Phase Severe Duty Motor, 100 hp HP, 405T Frame, 460V AC Voltage, 1,785 RPM Nameplate RPM

  • Mfr # 405TTFCD6536

  • Zoro # G2245251

product price:
$
12,260.99
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
100 hp
Nameplate RPM
1,785 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
113 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
405TTFCD6536
Zoro #
G2245251
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
31 5/8 in
Overall Length
38 7/8 in
Shaft Dia.
2 7/8 in
Shaft Length
7 1/2 in
Manufacturers Warranty Length
1 yr
Lead Length
3 in
Shaft Diameter
2 7/8 in
Frame Size
405T
Wire Rope Length
38 7/8 in
Length
38 7/8 in

Details

Item
Severe Duty Motor
HP
100 hp
Nameplate RPM
1,785 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
113 A
Frame
405T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
Hazardous Location
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Ins. Class
H
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.4 %
Standards
CE, CSA, IEEE45, UL Listed
CC Number
CC003A
Motor Thermal Protection
None
Includes
Max Guard Insulation, Shaft Key
Inverter Rated
Yes
Temp. Code
T2B
Hazardous Location Class
Class I
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Weight
1,325 lb
Usable @ 200V
Not Usable at 200V
Hazardous Location Division
Division II
Conduit Box Location
Exterior
Hazardous Location Group
Group A, Group B, Group C, Group D
Full Load Current @ 60 Hz
113 A
Frequency
60 Hz
Application
Hazardous Location
Number of Speeds
1
Insulation Class
H
Conduit Box Position
F1/F2
NEMA Design Class
B
Bearing Type
Ball
Product Type
Severe Duty Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Keyed
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Temperature Code
T2B
Nameplate Service Factor @ 60 Hz
1.15

Description

Severe Duty Motor, Three Phase, Motor Design Three-Phase, 100 hp HP, Nameplate RPM 1,785 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 113 A, 405T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Class I, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
