Shop MARATHON

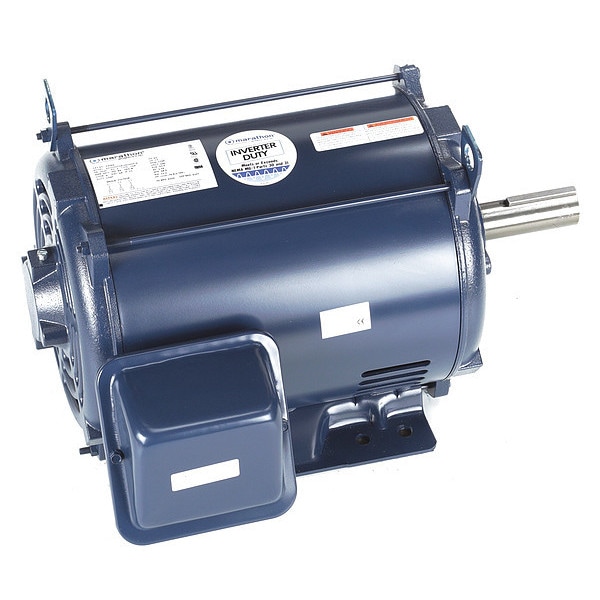

Three-Phase General Purpose Motor, 15 HP, 254T Frame, 200V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 254TTDBD6039

  • Zoro # G7432601

product price:  $1,471.99
/ea
Additional $165.00 delivery surcharge applies per item.
See details

Key Features

HP
15
Nameplate RPM
1,770
Voltage
200V AC
Motor Mounting Type
Rigid Base
Full Load Amps
42.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
254TTDBD6039
Zoro #
G7432601
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
16 3/8 in
Overall Length
20 9/16 in
Shaft Dia.
1 5/8 in
Shaft Length
4 3/16 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 5/8 in
Frame Size
254T
Wire Rope Length
20 9/16 in

Details

Item
General Purpose Motor
HP
15
Nameplate RPM
1,770
Voltage
200V AC
Motor Mounting Type
Rigid Base
Full Load Amps
42.5 A
Frame
254T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-208V AC, 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91.7 %
Standards
CSA (LR2025), UL (E49747)
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
1,475 RPM
Frequency
60 Hz
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Full Load Current @ 60 Hz
42.5 A
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Inverter Rating
Inverter Rated
Insulation Class
B
Frame Material
Steel
Application
General Purpose
Mounting Position
Horizontal

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 15 HP, Nameplate RPM 1,770, Frame 254T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 42.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CSA (LR2025), UL (E49747)
