Shop MARATHON

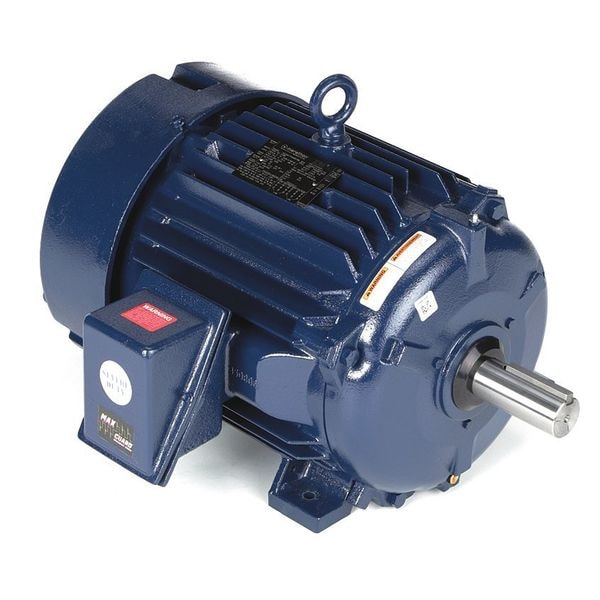

Three-Phase Severe Duty Motor, 25 hp HP, 284T Frame, 230/460V AC Voltage, 1,772 RPM Nameplate RPM

  • Mfr # 284TTFCD6837
  • Zoro # G9943735
product price:
$
2,736.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details

Key Features

HP
25 hp
Nameplate RPM
1,772 RPM
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
60.0/30.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
284TTFCD6837
Zoro #
G9943735
UPC #
-
Country of Origin
Mexico
Item
Severe Duty Motor
HP
25 hp
Nameplate RPM
1,772 RPM
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
60.0/30.0 A
Frame
284T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
Severe Duty
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Ins. Class
H
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
93.6 %
Standards
CE, CSA, IEEE45, UL Listed
CC Number
CC003A
Includes
Max Guard Insulation
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Inverter Rated
Inverter Rated
NEMA Design
B
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Weight
494 lb
Temp. Code
T2B
Hazardous Location Class
1 C,D / 2 F,G
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
60.0/30.0 A
Application
Severe Duty
Bearing Type
Ball
Inverter Rating
Inverter Rated
Efficiency Rating
Premium Efficiency (IE3)
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Product Type
Severe Duty Motor
Mounting Position
Horizontal
Number of Speeds
1
Insulation Class
H
Motor Enclosure Type
Totally Enclosed Fan Cooled
NEMA Design Class
B

Description

Severe Duty Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 1,772 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 60.0/30.0 A, 284T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
