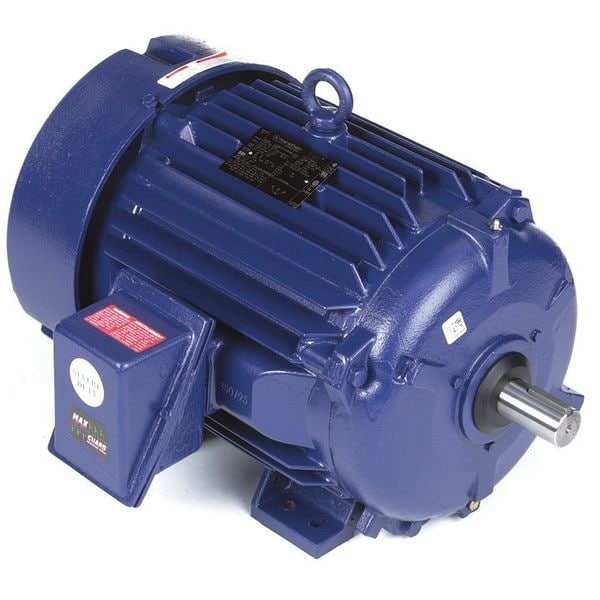

Three-Phase Severe Duty Motor, 30 hp HP, 286TS Frame, 460V AC Voltage, 3,550 RPM Nameplate RPM

  • Mfr # 286TSTFCD6501
  • Zoro # G9943717
product price:
$
3,541.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

HP
30 hp
Nameplate RPM
3,550 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
35.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
286TSTFCD6501
Zoro #
G9943717
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
23 5/16 in
Overall Length
26 3/4 in
Shaft Dia.
1 5/8 in
Shaft Length
3 7/16 in
Lead Length
3" to 8"
Frame Size
286TS
Wire Rope Length
26 3/4 in
Shaft Diameter
1 5/8 in
Length
26 3/4 in

Details

Item
Severe Duty Motor
HP
30 hp
Nameplate RPM
3,550 RPM
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
35.5 A
Frame
286TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
Severe Duty
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Hz
60 Hz
Ins. Class
H
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
94.5 %
Standards
CE, CSA, IEEE45, UL Listed
CC Number
CC003A
Motor Thermal Protection
None
Includes
Max Guard Insulation
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Inverter Rated
Inverter Rated
Weight
450 lb
Hazardous Location Class
1 C,D / 2 F,G
Temp. Code
T2B
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
H
Application
Severe Duty
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Efficiency Rating
Premium Efficiency (IE3)
Product Type
Severe Duty Motor
NEMA Design Class
B
Frequency
60 Hz
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
35.5 A
Number of Speeds
1
Shaft Design
Keyed
Inverter Rating
Inverter Rated

Description

Severe Duty Motor, Three Phase, Motor Design Three-Phase, 30 hp HP, Nameplate RPM 3,550 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 35.5 A, 286TS Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
