Dayton

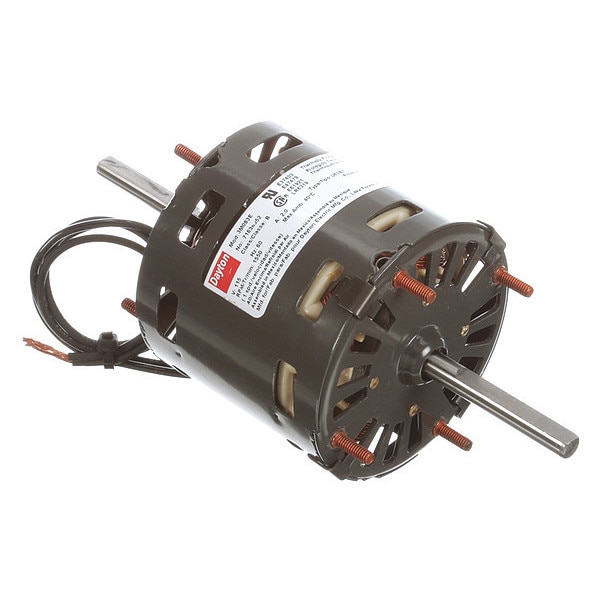

HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3


product price: $105.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 1,550
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/20
See all product information

Product Information

Dimensions

Body Dia. 3 5/16 in
Cord Length 12 in
Shaft Dia. 5/16 in
Length Less Shaft 5 3/16 in
Shaft Length 2 5/16 in

Details

Voltage 115V AC
Nameplate RPM 1,550
Motor Enclosure Design Open Air-Over
Number of Speeds 1
HP 1/20
RPM Range 1,501-1,600
Stud/Base Mtg. Pattern 2 in x 2 in
Motor Thermal Protection Auto
Motor Shaft Rotation CCWLE
No. of Speeds 1
Max. Ambient Temp. 40 Degrees C
Footnotes 18
Motor Bearings Sleeve
Motor Design Shaded Pole
Phase Single
Application OEM and Replacement Use In A Wide Variety of Fan and Blower
Duty Continuous
Frame 3.3
Number of Shafts 2
Motor Service Factor 1
Item HVAC Motor
Includes Double Shaft Motor
Motor Mounting Type Stud
Mounting Stud Location 4/Both Ends
Ins. Class B
Motor Application HVAC/R
Hz 60 Hz
Motor Sub Application Direct Drive Fan/Blower
Full Load Amps 2.1 A
Motor Shaft Design Flat
Standards CSA Certified, UL Recognized
Mounting Pattern 2 x 2
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Capacitor Required No
Duty Cycle Continuous
Usable @ 208V No
Mounting Stud Pattern 2 in x 2 in
Motor Mounting Position All Angle
Usable @ 200V No
Type OEM Replacement
Mounting Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 2.1 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 2
