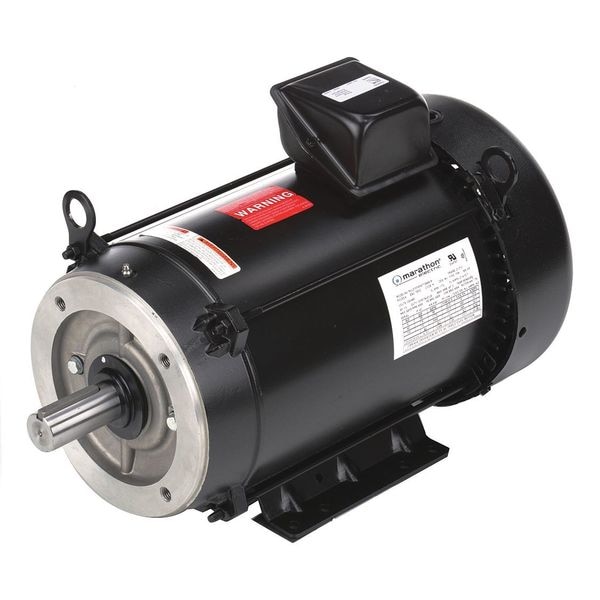

Vector Motor, 22.3 lb-ft, 7.5 HP, 230/460 V
Mfr # 213THFW7726
Zoro # G3375915
product price:Â $1,684.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
HP
7 1/2
Torque
22.3 ft-lb
Nameplate RPM
1,770
Speed Range
1,000:1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
213THFW7726
Zoro #
G3375915
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
21 in
Shaft Dia.
1 3/8 in
Shaft Length
3 1/8 in
Length Less Shaft
17 7/8 in
Manufacturers Warranty Length
3 Years
Frame Size
213TC
Shaft Diameter
1 3/8 in
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 7 1/2 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 21.4/10.7 A, 213TC Frame, Torque 22.3 ft-lb, Max. Speed 4,000 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW
