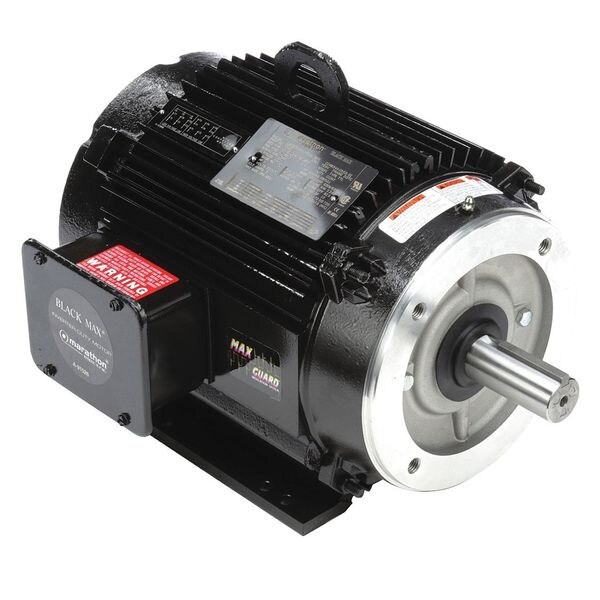

Vector Motor, 3 HP, 13.6 lb-ft, 230/460V

  • Mfr # 213THTL7776
  • Zoro # G5649673
product price:
$
2,460.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
3
Torque
13.6 ft-lb
Nameplate RPM
1,160
Speed Range
1,000:1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213THTL7776
Zoro #
G5649673
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
19 1/16 in
Shaft Length
3 1/8 in
Shaft Dia.
1 3/8 in
Encoder Shaft Dimensions
5/8 in x 1 5/8 in
Frame Size
213TC
Encoder Shaft Diameter
5/8 in
Encoder Shaft Length
1 5/8 in
Shaft Diameter
1 3/8 in
Wire Rope Length
19 1/16 in
Length
19 1/16 in

Details

Item
Vector Motor
Motor Design
Three-Phase
HP
3
Torque
13.6 ft-lb
Nameplate RPM
1,160
Speed Range
1,000:1
Max. Speed
4,200 RPM
Frame
213TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Frame Material
Aluminum
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Mounting Position
Horizontal
Encoder Shaft
Yes
Base
Rigid
Finish
Black
Hz
60 Hz
Phase
Three
Nominal Efficiency
82.5 %
Encoder Acceptable
Yes
Motor Shaft Design
Keyed
Insulation Feature
MAX GUARD Class F
Motor Application
Crane
Ambient Temperature
40 Degrees C
Motor Frame Material
Aluminum
Motor Efficiency Group
Standard Efficient
Standards
CE, UL Recognized
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Full Load Amps
9.4/4.7 A
Motor Mounting Type
Rigid Base
Ins. Class
F
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
NEMA Design
A
Duty
Continuous
Max. Operating Frequency
120 Hz
RPM Range
1,101-1,200
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
104 Degrees F
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Weight
118 lb
Conduit Box Position
F1, F2
Shaft Design
Keyed
Maximum Speed
4,200 RPM
Product Type
Vector Motor
NEMA Design Class
A
Efficiency Rating
NEMA Standard Efficiency
Ambient Temperature - Maximum
40 Degrees C
Inverter Rated
Inverter Rated
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Full Load Current @ 60 Hz
9.4/4.7 A
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Insulation Class
F
Maximum Operating Frequency
120 Hz
Bearing Type
Ball

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,160, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 9.4/4.7 A, 213TC Frame, Torque 13.6 ft-lb, Max. Speed 4,200 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
